· Tight locking mode
· Large marking area allowing for the printing of multiple logo logos
· Low temperature breakage and good toughness
· Permanent laser maximum printing safety Mark
Hotline: + 86-17667362107 Email: jcseal01@sdjcsy.com
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS003
· Material: Plastic
· Style: Mechanical Seal
· Color: Yellow Green Red White
· Feature: Resistance
· Temperature: 40~120
· Size: Standard Size
· Certificate: ISO9001:2008
· Usage: Cars Doors Windows Furniture
· Printing: Logo
· Packing: Carton
· Keyword: Plastic Seal Tag
· Standard or Nonstandard: Standard
Application
· All kinds of Containers, Trucks, Tanks, Doors,Postal services, Courier services, Bags, Airline Luggage,Airline,Liquor,Carts,Food Carts, Trolleys.
Features
· Self-locking – no tools required
· All plastic, easy for recycling
· Adjustable with over twenty locking positions
Specification
· All plastic, easy for recycling.
· Pull tight locking mechanism.
· Removable by bolt/cable cutters, eyes protection is necessary.
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

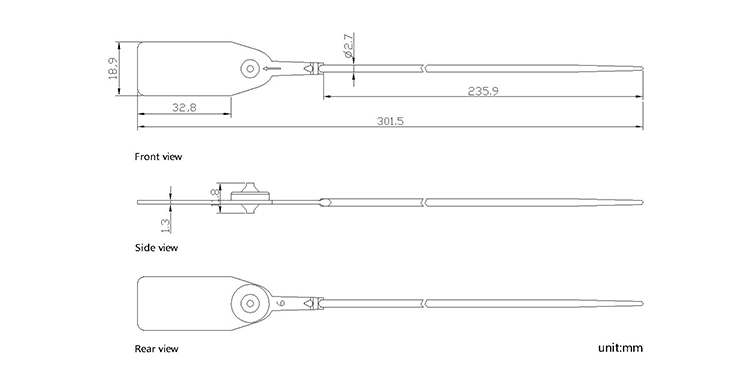

STRUCTURE DIAGRAM
Parameter
|
Nombre |
JCPS001 |
JCPS002 |
JCPS003 |
JCPS005 |
JCPS006 |
JCPS007 |
JCPS008 |
JCPS004 |
|
Longueur |
250mm |
450mm |
300/400/500/700mm,Longue carte420mm |
300/400mm |
450/500mm |
280mm |
145mm |
340/400mm |
|
Taille de la zone de marquage |
91.65*80.27mm |
38*30mm |
28.26*18.8mm， Longue carte 63*25mm |
55*25.2mm |
52.6*31mm |
34.7*13.5mm |
32.1*18.8mm |
28.6*21.3mm |
|
Diamètre |
2mm |
4mm |
3mm |
2mm |
4mm |
2mm |
2.5mm |
3mm |
|
Tirer |
124N |
409N |
235N |
173N |
430N |
165N |
185N |
237N |
|
Processus de fabrication |
Certificat d'entreprise... |
|||||||
|
Matériel |
PP |
|||||||
|
Couleur |
Jaune, blanc, bleu, vert, rouge, orange, etc. |
|||||||
|
Méthode de marquage |
Marquage laser, marquage à chaud, autres |
|||||||
|
Marquer le contenu |
Les numéros, lettres, logos, codes à barres, etc. peuvent être marqués selon la méthode spécifiée par le client. |
|||||||
|
Utiliser |
Express, logistique, restauration, hôpital, poste, etc. |
|||||||
|
Emballage |
Express, logistique, restauration, hôpital, poste, etc.... |
|||||||
|
Certificat d'entreprise |
ISO9001,ISO14001, ISO18001, ISO17712，SGS，C-TPAT |
|||||||
Emballage
Scène de production
Junchuang est l'un des plus grand fabricant de scellés de sécurité en Chine
