The colors are red, yellow, blue and green, etc., and other products can be customized according to customer requirements.
Widely used, can be used in supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc.
Hot stamping or laser marking company logo or name, code, etc.
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCCS301
· Standard or Nonstandard: Nonstandard
· Color: Blue/green/yellow/others
· Custom ordered: Bar code,Numbering
· Certification: ISO17712
· Imprinting: Laser-Etch
· Cable size: Diameter & length as per custom ordered.
· Strength: >3.5KN
· Feature: Simple,lock by hand.g
Application
· Railway cars,truck trailers,containers,international freight.

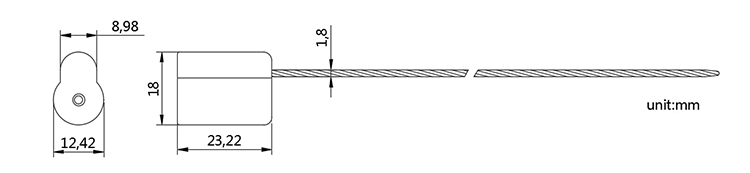

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCCS202 |
JCCS203 |
JCCS204 |
JCCS205 |
JCCS206 |
JCCS301 |
JCCS302 |
JCCS405 |
|
Material |
ABS Powder metallurgy A3 wire rope |
Powder metallurgy A3 wire rope |
Zinc alloy ABS A3 wire rope |
ABS Powder metallurgy PP A3 wire rope |
||||
|
Lock body size |
36.2*12*11.7 |
22.3*15.*8.55 |
22.6*15.*8.9 |
25.2*18*10 |
25*36*11 |
23.2*18*12.4 |
17.3*14*9.5 |
26.5*14*12 |
|
diameter |
1.0mm/1.8mm, etc. |
|||||||
|
pull |
>3.5KN |
>1.6KN |
||||||
|
Manufacturing process |
Injection molding |
|||||||
|
colour |
Red, yellow, orange, blue, green, etc. |
|||||||
|
Wire rope material |
A3 steel |
|||||||
|
Wire rope length |
23cm-25cm |
|||||||
|
Wire rope specification |
7*7 |
|||||||
|
Marking method |
Laser marking, hot stamping |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc. |
|||||||
|
use |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
|||||||
|
package |
100 pieces/bag, 1000 pieces/box, can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

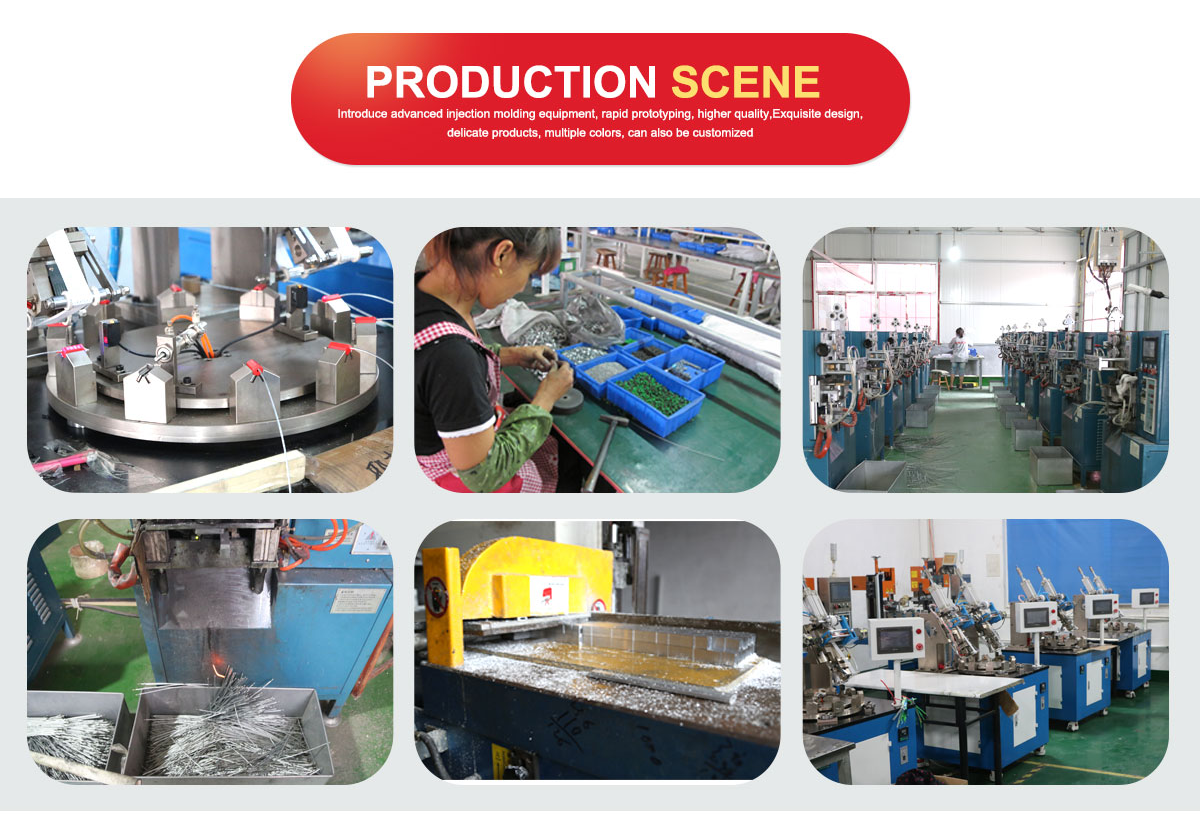

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
