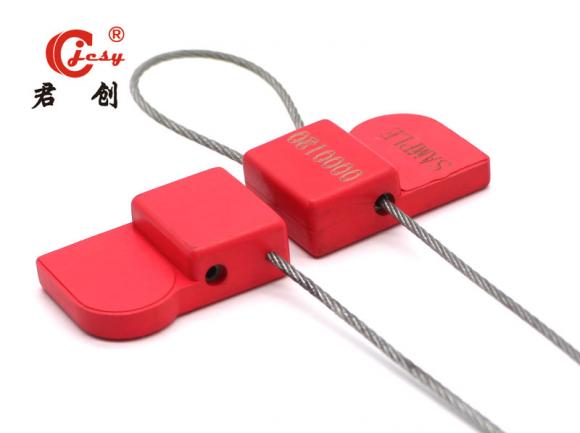

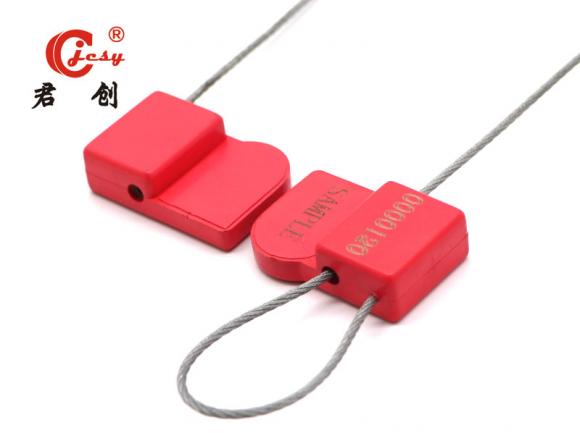

·The lock body is composed of aluminum alloy shell and zinc alloy inner parts
·Self-locking system is easy to lock
·Permanent laser maximum print security mark
· Standard total length 23cm, wire diameter 1-5mm, 5.0mm or more custom
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCCS206
· Material: powder metallurgy,A3 wire rope
· Style: Plastic coated wire seal
· Lock body size: 25*36*11
· Diameter: 1.8mm
· Packing weight: 21.22kg
· Color: red, yellow,orange,blue,green and so on
· Printing type: Laser marking
· Marking contents: Numbers,Letters,mark,bar codes
· Tensile Strength: >2.27KN
· Sample: free
· Feature: Tamper-evident, One Time Use
· Standard or Nonstandard: Standard
Application
· Supermarkets, oil, containers, Railway containers, meter boxes, bank purses and so on.

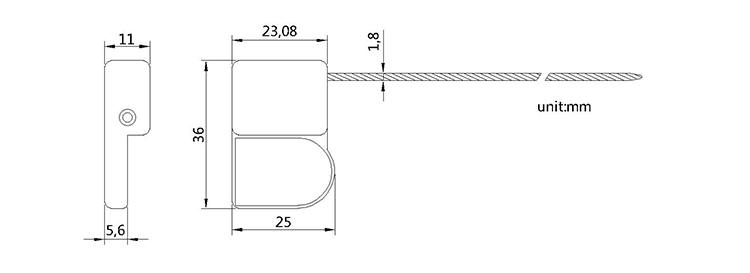

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCCS202 |
JCCS203 |
JCCS204 |
JCCS205 |
JCCS206 |
JCCS301 |
JCCS302 |
JCCS405 |
|
Material |
ABS Powder metallurgy A3 wire rope |
Powder metallurgy A3 wire rope |
Zinc alloy ABS A3 wire rope |
ABS Powder metallurgy PP A3 wire rope |
||||
|
Lock body size |
36.2*12*11.7 |
22.3*15.*8.55 |
22.6*15.*8.9 |
25.2*18*10 |
25*36*11 |
23.2*18*12.4 |
17.3*14*9.5 |
26.5*14*12 |
|
diameter |
1.0mm/1.8mm, etc. |
|||||||
|
pull |
>3.5KN |
>1.6KN |
||||||
|
Manufacturing process |
Injection molding |
|||||||
|
colour |
Red, yellow, orange, blue, green, etc. |
|||||||
|
Wire rope material |
A3 steel |
|||||||
|
Wire rope length |
23cm-25cm |
|||||||
|
Wire rope specification |
7*7 |
|||||||
|
Marking method |
Laser marking, hot stamping |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc. |
|||||||
|
use |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
|||||||
|
package |
100 pieces/bag, 1000 pieces/box, can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

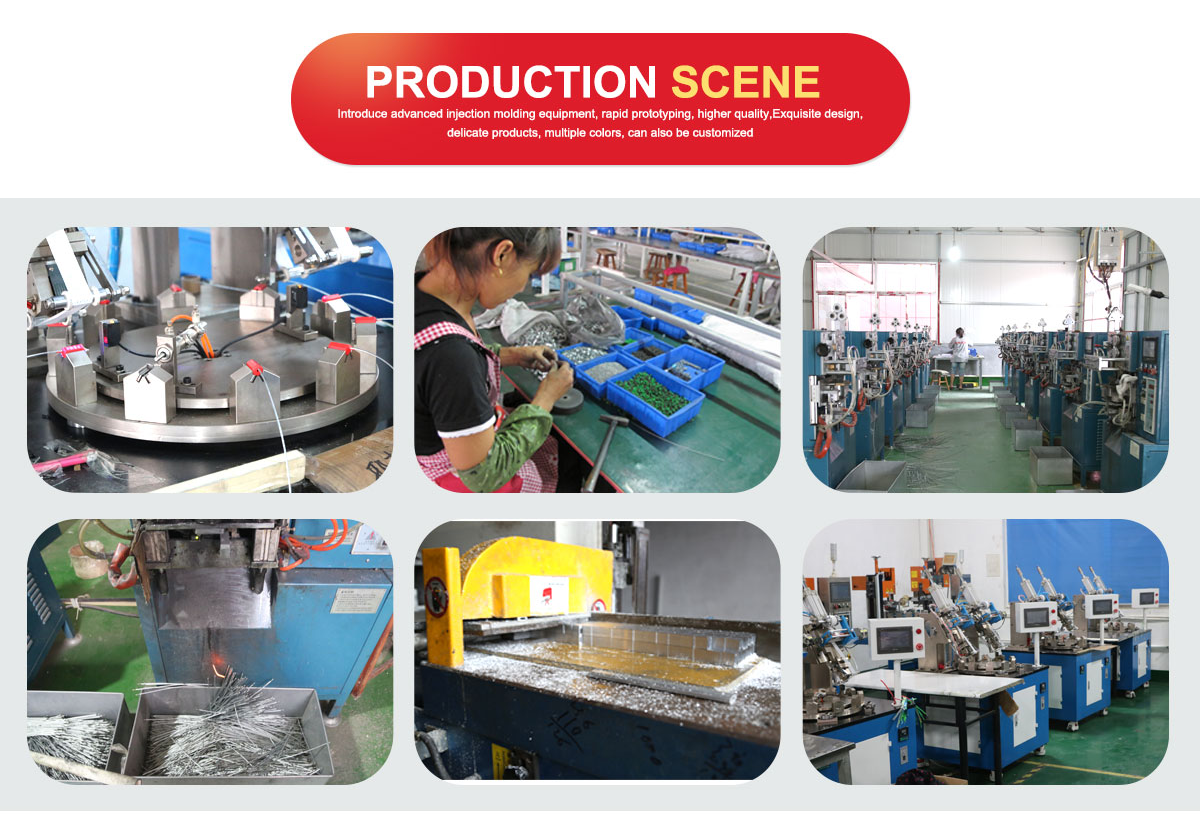

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
