Tightening structure, easy to use
Suitable for valves, containers, meter boxes, barrel packaging, logistics transport vehicles, container boxes, etc.
Hotline: +86 16653166099 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCCS103
· Material: Metal, Aluminum head,heavy-duty steel.
· Style: cable seals
· Color: Blue/green/red/others
· Cable size: Diameter 1.8mm,Length 20cm(Standard)
· Lock Body Size: 22.8mm(Length)*10.2mm(Width)*9mm(Thickness)
· Imprinting: Laser-Etch
· Custom ordered: Bar code,Numbering
· Standard or Nonstandard: Standard
Application
· Railway cars,truck trailers,containers,international freight.

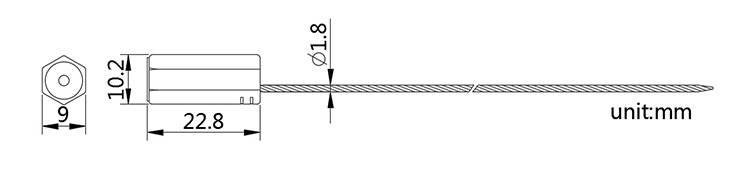

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCCS101 |
JCCS009 |
JCCS102 |
JCCS103 |
JCCS104 |
JCCS105 |
JCCS106 |
JCCS201 |
|
Material |
ABS |
A3 wire rope |
ABS |
|||||
|
Lock body size |
26.5*14* 12 |
31.5*9.5 |
18.85*12.9*5.23 |
22.88*10.2*9 |
25.58*15.5*8.7 |
22.2*15.6*10.14 |
26.5*17.3*16 |
26.5*13.88*12.2 |
|
diameter |
1.0mm/1.8mm |
|||||||
|
Marking method |
Laser marking / hot stamping |
|||||||
|
pull |
>1.6KN |
>3.5KN |
>1.6KN |
>3.5KN |
||||
|
use |
Tank lock |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
||||||
|
colour |
Red, yellow, orange, blue, green, etc. |
|||||||
|
Wire rope material |
A3 steel |
|||||||
|
Wire rope length |
Can be customized according to customer requirements |
|||||||
|
Wire rope specification |
7*7 |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc. |
|||||||
|
package |
100 pieces/bag, 1000 pieces/box, can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||

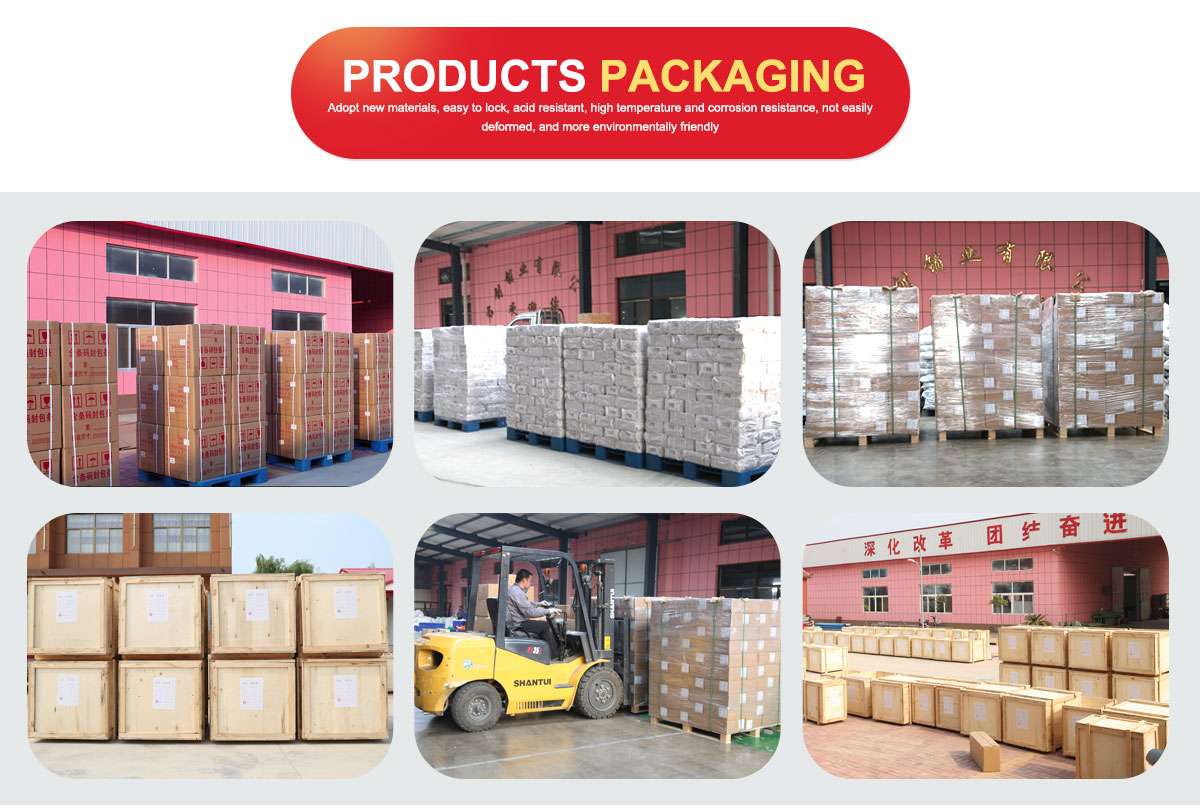

Packaging

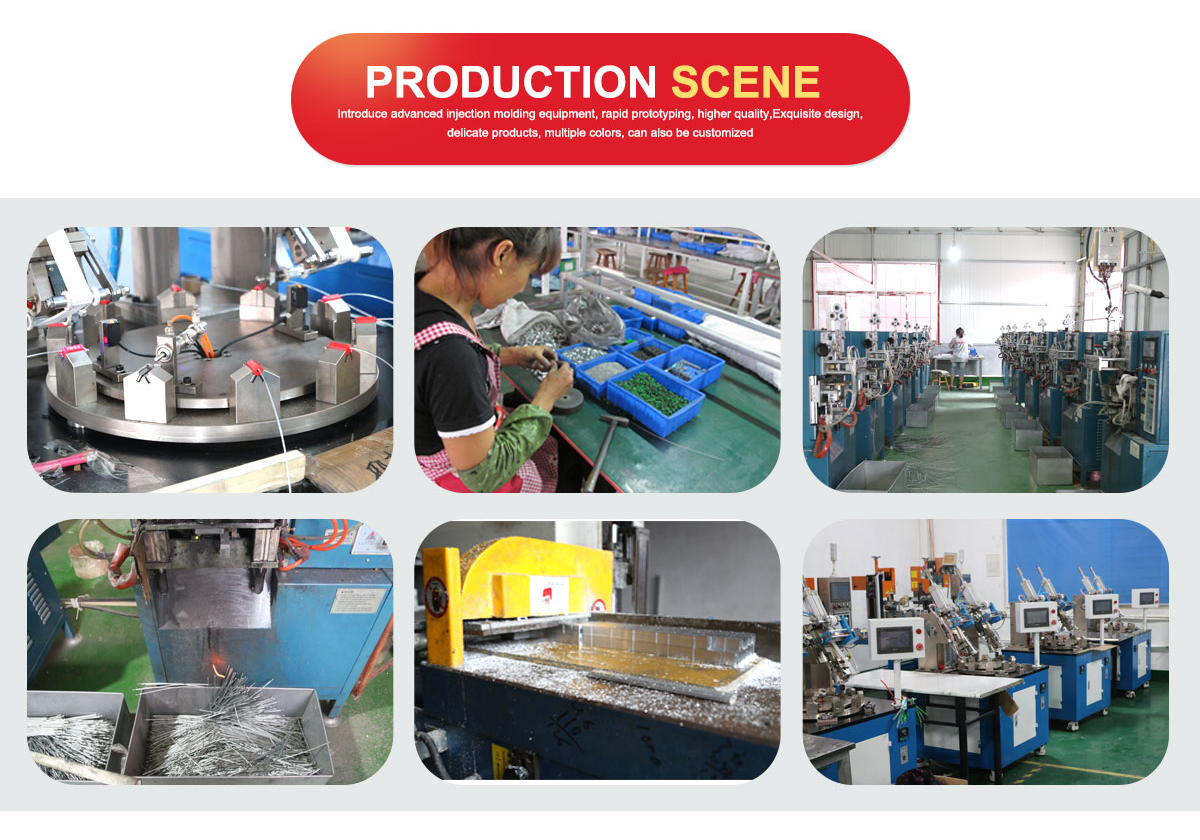

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
