Using laser marking technology,
Marking content including numbers, letters, logos, barcodes, etc., can be customized
Widely used in supermarkets, oil, containers, etc.
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCCS102
· Material: powder metallurgy,A3 wire rope
· Style: Plastic coated wire seal

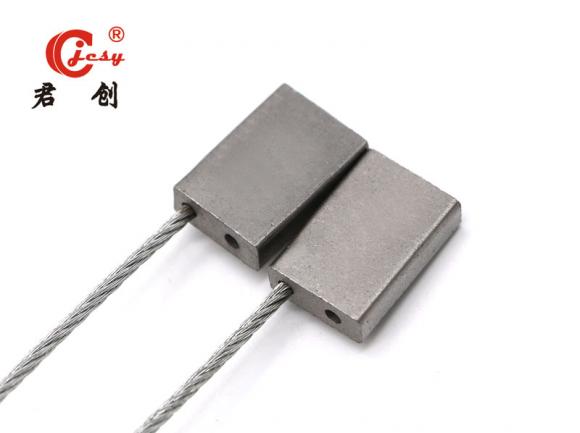

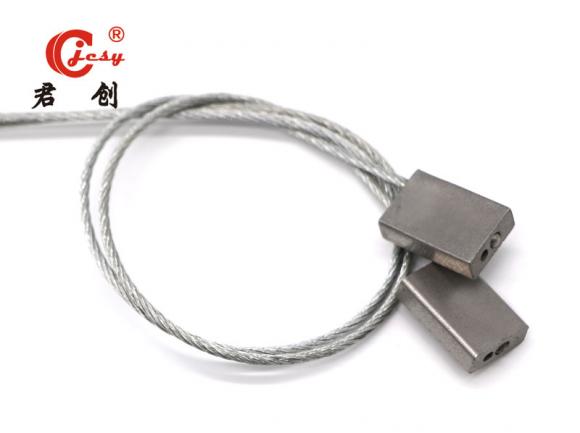

· Product name: adjustable aluminum alloy Container Seal metal cable seals
· Diameter: 1.8mm
· Lock body size: 18.85*12.9*5.23
· Packing weight: 11.43kg
· Color: red, yellow,orange,blue,green and so on
· Fabrication process: Stamping
· Printing type: Laser marking
· Marking contents: Numbers,Letters,mark,bar codes
· Tensile Strength: >3.5KN
· Product certificate: ISO17712,CTPAT
· Standard or Nonstandard: Standard
Application
· Supermarkets, oil, containers, Railway containers, meter boxes, bank purses and so on.

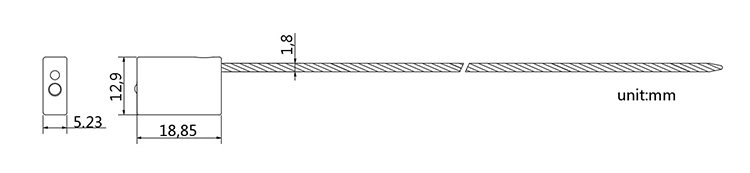

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCCS101 |
JCCS009 |
JCCS102 |
JCCS103 |
JCCS104 |
JCCS105 |
JCCS106 |
JCCS201 |
|
Material |
ABS |
A3 wire rope |
ABS |
|||||
|
Lock body size |
26.5*14* 12 |
31.5*9.5 |
18.85*12.9*5.23 |
22.88*10.2*9 |
25.58*15.5*8.7 |
22.2*15.6*10.14 |
26.5*17.3*16 |
26.5*13.88*12.2 |
|
diameter |
1.0mm/1.8mm |
|||||||
|
Marking method |
Laser marking / hot stamping |
|||||||
|
pull |
>1.6KN |
>3.5KN |
>1.6KN |
>3.5KN |
||||
|
use |
Tank lock |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
||||||
|
colour |
Red, yellow, orange, blue, green, etc. |
|||||||
|
Wire rope material |
A3 steel |
|||||||
|
Wire rope length |
Can be customized according to customer requirements |
|||||||
|
Wire rope specification |
7*7 |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc. |
|||||||
|
package |
100 pieces/bag, 1000 pieces/box, can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

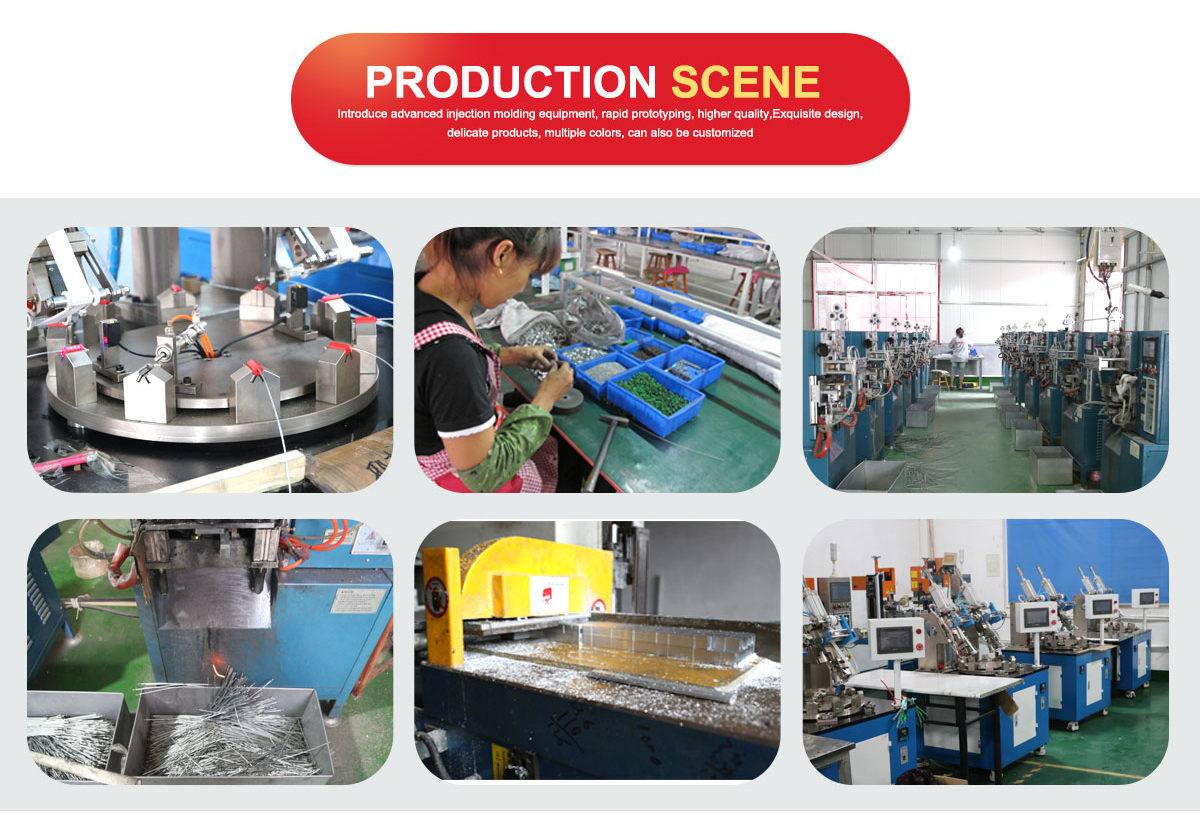

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
