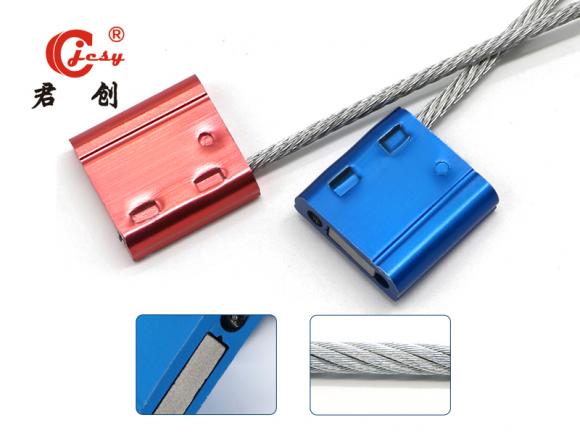

Rectangular wire seal, made of aluminum alloy and A3 wire rope
Excellent safety and quick and easy operation
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCCS008
· Standard or Nonstandard: Standard
· Material: Aluminum head,heavy-duty steel.
· Color: Blue/green/red/others
· Cable size: Diameter 4mm,Length 20cm(Standard)
· Lock Body Size: 26mm(Length)*26mm(Width)*7.5mm(Thickness)

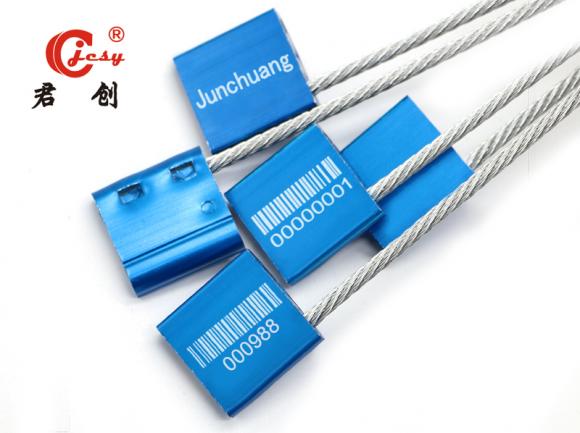

· Imprinting: Laser-Etch
· Custom ordered: Bar code,Numbering
Application
· Railway cars,truck trailers,containers,international freight.

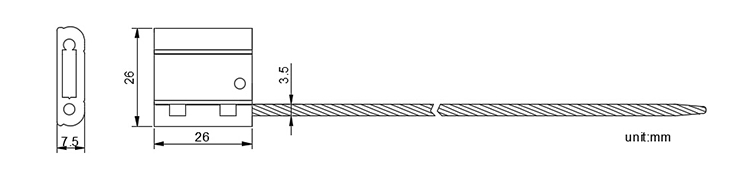

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCCS003 |
JCCS002 |
JCCS001 |
JCCS004 |
JCCS005 |
JCCS006 |
JCCS007 |
JCCS008 |
|
Lock body size |
26.2*27.3*9 |
26.3*26.5*8.8 |
|
29.3*20.2*7.5 |
35*41*13 |
29*20.3*7.8 |
26*22*6 |
26*26*7.5 |
|
diameter |
4.0mm |
1.5mm 1.8mm 2.5mm 3.5mm |
1.8mm |
1.5mm |
5.0mm |
1.5mm |
1.0mm 1.5mm 1.8mm 2.5mm |
3.0mm 3.5mm |
|
pull |
>15KN |
>3.5KN |
>6KN |
>12KN |
||||
|
Material |
Aluminum alloy |
|||||||
|
Manufacturing process |
Oxidative coloring |
|||||||
|
colour |
Red, yellow, orange, blue, green, etc. |
|||||||
|
Wire rope material |
A3 steel |
|||||||
|
Wire rope length |
Can be customized according to customer requirements |
|||||||
|
Wire rope specification |
7*7 |
|||||||
|
Marking method |
Laser marking / hot stamping |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc. |
|||||||
|
use |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
|||||||
|
package |
100 pieces/bag, 1000 pieces/box, can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||

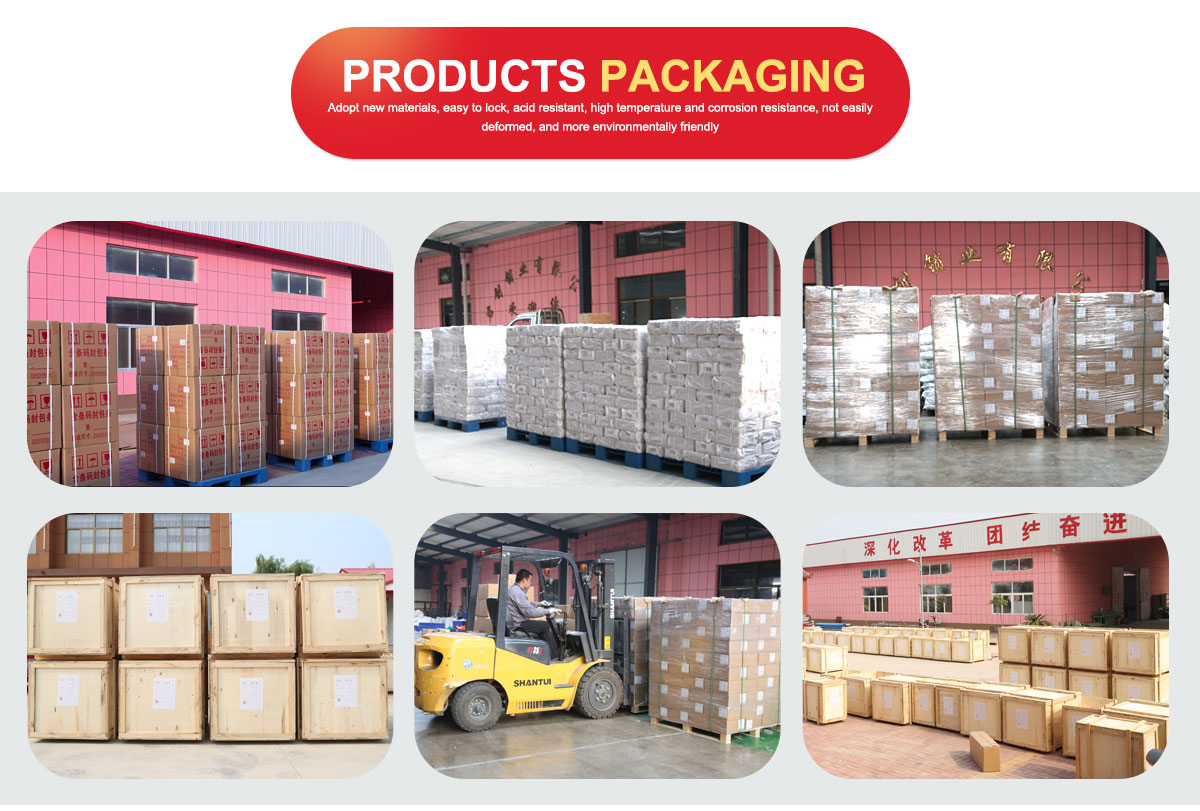

Packaging

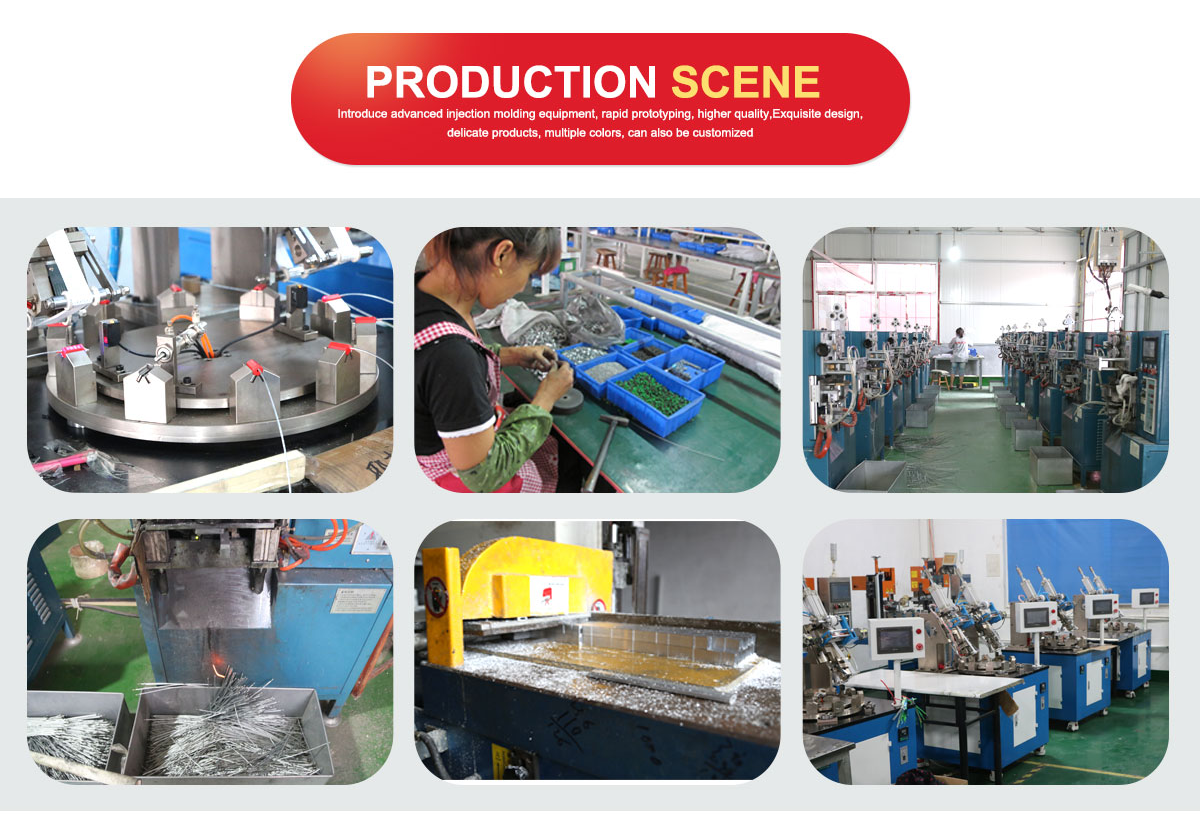

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
