Material consists of aluminum alloy and A3 wire rope
Available in red, yellow, orange, blue, green and other colors, can be customized
Suitable for valves, containers, meter boxes, barrel packaging, logistics transport vehicles, container boxes, etc.
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCCS002
· Material: Metal, Aluminum head,heavy-duty steel.
· Style: cable seals
· Color: Blue/green/red/others
· Cable size: Diameter 1.5mm,Length 20cm(Standard)
· Lock Body Size: 26.3mm(Length)*26.5mm(Width)*8.8mm(Thickness)
· Imprinting: Laser-Etch
· Custom ordered: Bar code,Numbering
· Standard or Nonstandard: Standard
Application
· Railway cars,truck trailers,containers,international freight.

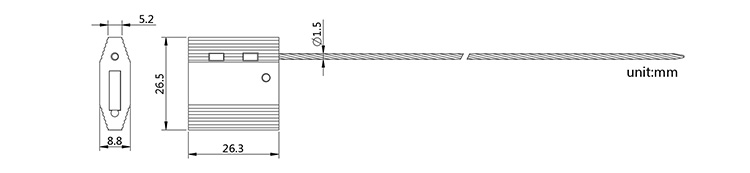

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCCS003 |
JCCS002 |
JCCS001 |
JCCS004 |
JCCS005 |
JCCS006 |
JCCS007 |
JCCS008 |
|
Lock body size |
26.2*27.3*9 |
26.3*26.5*8.8 |
|
29.3*20.2*7.5 |
35*41*13
|
29*20.3*7.8 |
26*22*6 |
26*26*7.5 |
|
diameter |
4.0mm |
1.5mm 1.8mm 2.5mm 3.5mm |
1.8mm |
1.5mm |
5.0mm |
1.5mm |
1.0mm 1.5mm 1.8mm 2.5mm |
3.0mm 3.5mm |
|
pull |
>15KN |
>3.5KN |
>6KN |
>12KN |
||||
|
Material |
Aluminum alloy |
|||||||
|
Manufacturing process |
Oxidative coloring |
|||||||
|
colour |
Red, yellow, orange, blue, green, etc. |
|||||||
|
Wire rope material |
A3 steel |
|||||||
|
Wire rope length |
Can be customized according to customer requirements |
|||||||
|
Wire rope specification |
7*7 |
|||||||
|
Marking method |
Laser marking / hot stamping |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc. |
|||||||
|
use |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
|||||||
|
package |
100 pieces/bag, 1000 pieces/box, can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

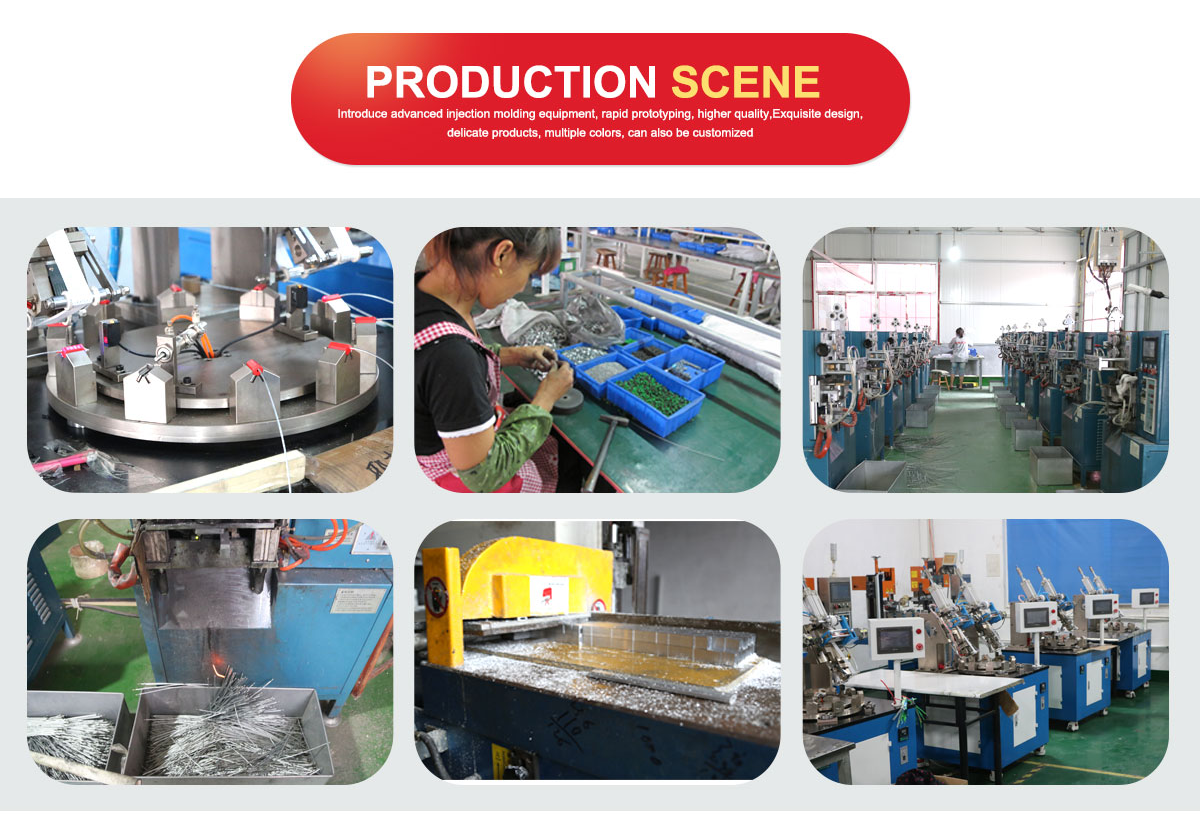

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
