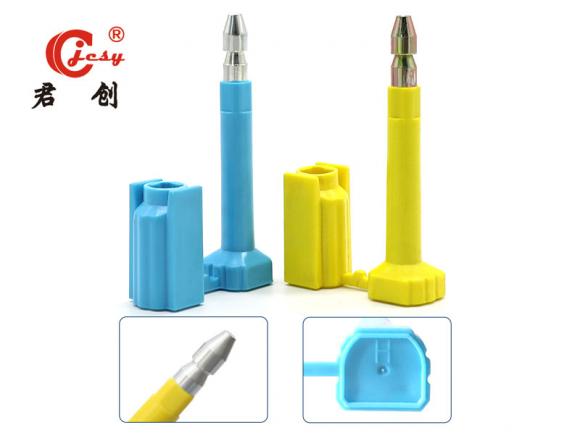

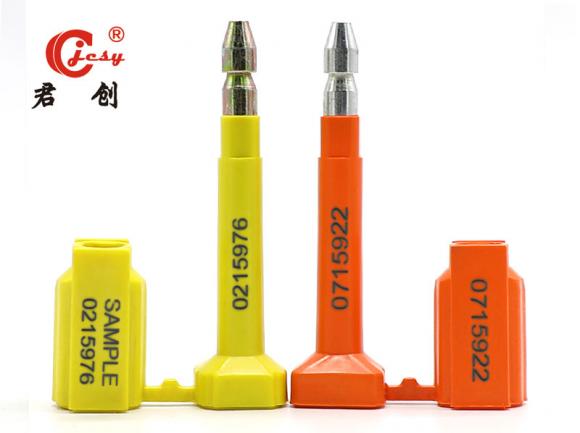

Bolt Seals
The high security seal is firm, easy to lock, safe and reliable.
Standard colors are red, yellow, red, blue, and white. Use cutting-edge laser technology and hot pressing technology to print the name or logo of the company for the customer
Hotline: +86 16653166099 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: junchuang
· Model Number: JCBS105
· Certificate: ISO17712, SGS, C-APCT, ISO14001 18001, ISO9001:2015
· Color: red, orange, yellow, green, blue, white
· Numbering: serial number, logo, company name, barcode, QR code
· Package: 250ocs/carton
· Size: 53*32*14cm
· MOQ: 10pcs
· Product Name1: container seal
· Product name2: bolt seal
· Product name3: container bullet seal
Application
· Custom container,tan truck,van truck,oil tank, railway,train.

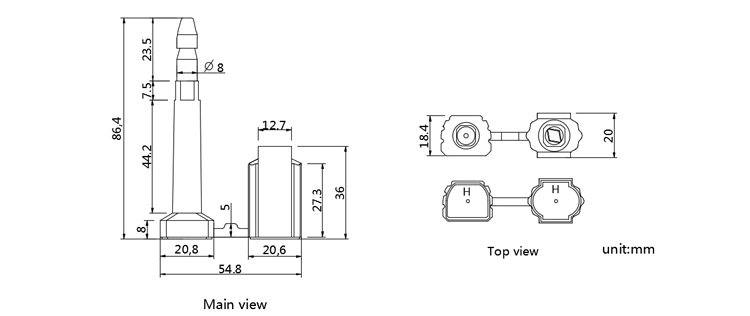

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCBS105 |
JCBS106 |
JCBS202 |
JCBS203 |
JCBS204 |
JCBS205 |
JCBS602 |
JCBS601 |
|
height |
86.4mm |
86mm |
74mm |
76.1mm |
80.1mm |
74.1mm |
84.8mm |
79.1mm |
|
diameter |
8mm/7mm |
|||||||
|
Inner rod color |
White zinc plating / color zinc |
|||||||
|
Material |
ABS, Q235A low carbon steel |
|||||||
|
Rod height |
72-110mm |
|||||||
|
Spring material |
Carbon spring steel |
|||||||
|
Spring shape |
Diamond / O type |
|||||||
|
Shell color |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
pull |
>18KN |
|||||||
|
package |
10 boxes/box, 25 boxes/carton, can be customized according to customer's specified method |
|||||||
|
Box size |
53*32*14cm can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
|
application |
High security seals: containers, trailers, tankers, shipping, rail transport, logistics and freight, safes, lockers, etc. |
|||||||
Packaging

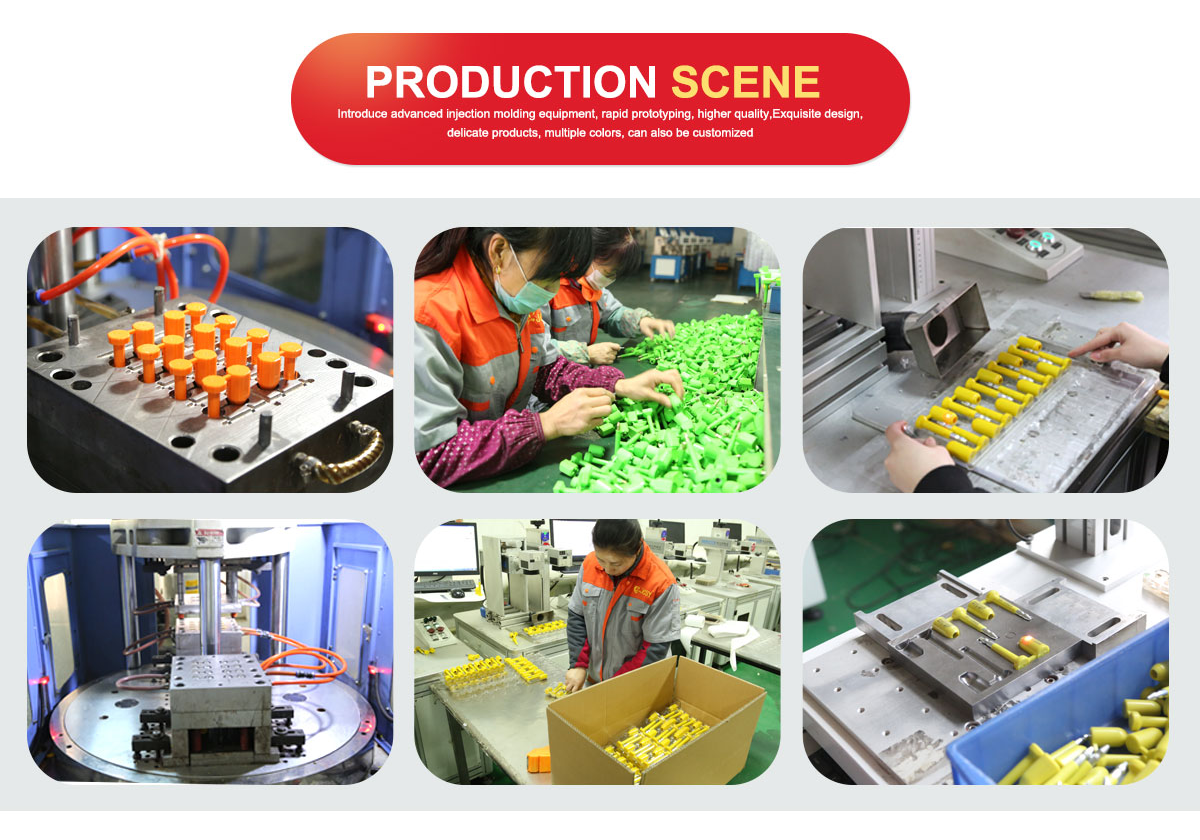

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
