JCBS103


The color can be customized according to the user's needs, and the outer sleeve of the lock can be protected by the transparent sleeve to prevent the change.

Package ABS plastic, laser marking, coding, barcode, etc.




Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone:86 16653166099

INTRODUCE

Customization options

· Place of Origin: China

· Brand Name: JUNCHUANG

· Model Number: JCBS103

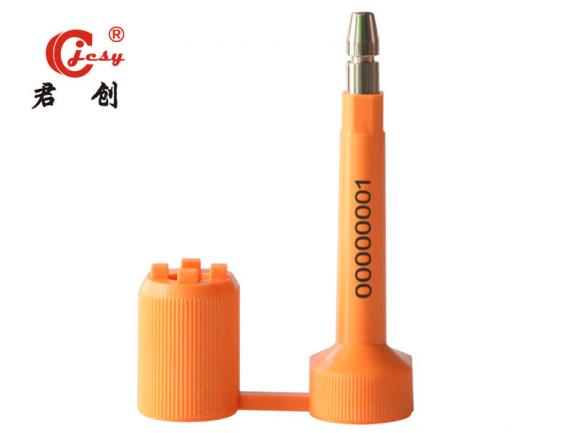

· Product name: JCBS103 custom shipping container bullet seal lock

· Size: 8mm

· Shell color: Yellow,White,Blue,Green,Red,Orange and so on

· Printing type: Laser marking or hot stamping

· Marking contents: Numbers,Letters,mark,bar codes

· Product certificate: ISO17712,CTPAT

· Tensile Strength: >15KN

· Application: Shipping container door

· Type: one time use

· Packing: 250 pcs per carton

Application

· Custom container,tan truck,van truck,oil tank, railway,train.

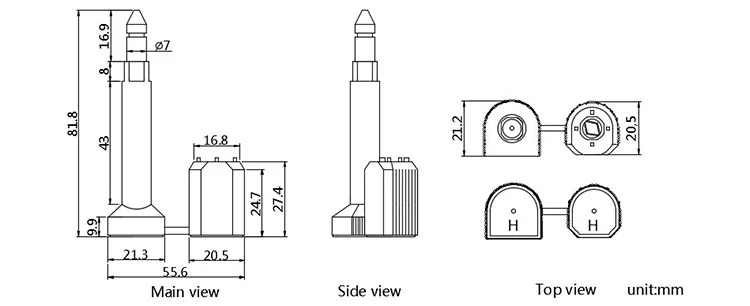

STRUCTURE DIAGRAM
Parameter

Numbering

JCBS001

JCBS002

JCBS003

JCBS004

JCBS101

JCBS102

JCBS104

JCBS103

height

73.8mm

74.68mm

72.65mm

80.5mm

85.1mm

75.4mm

74.4mm

81.8mm

diameter

8mm/7mm

Inner rod color

White zinc plating / color zinc

Material

ABS, Q235A low carbon steel

Rod height

72-110mm

Spring material

Carbon spring steel

Spring shape

Diamond / O type

Shell color

Yellow, white, blue, green, red, orange, etc.

Marking method

Laser marking, hot stamping

Marking content

Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer.

pull

>18KN

package

10 boxes/box, 25 boxes/carton, can be customized according to customer's specified method

Box size

53*32*14cm can be customized according to customer's specified method

Certificate

ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification

application

High security seals: containers, trailers, tankers, shipping, rail transport, logistics and freight, safes, lockers, etc.


Packaging

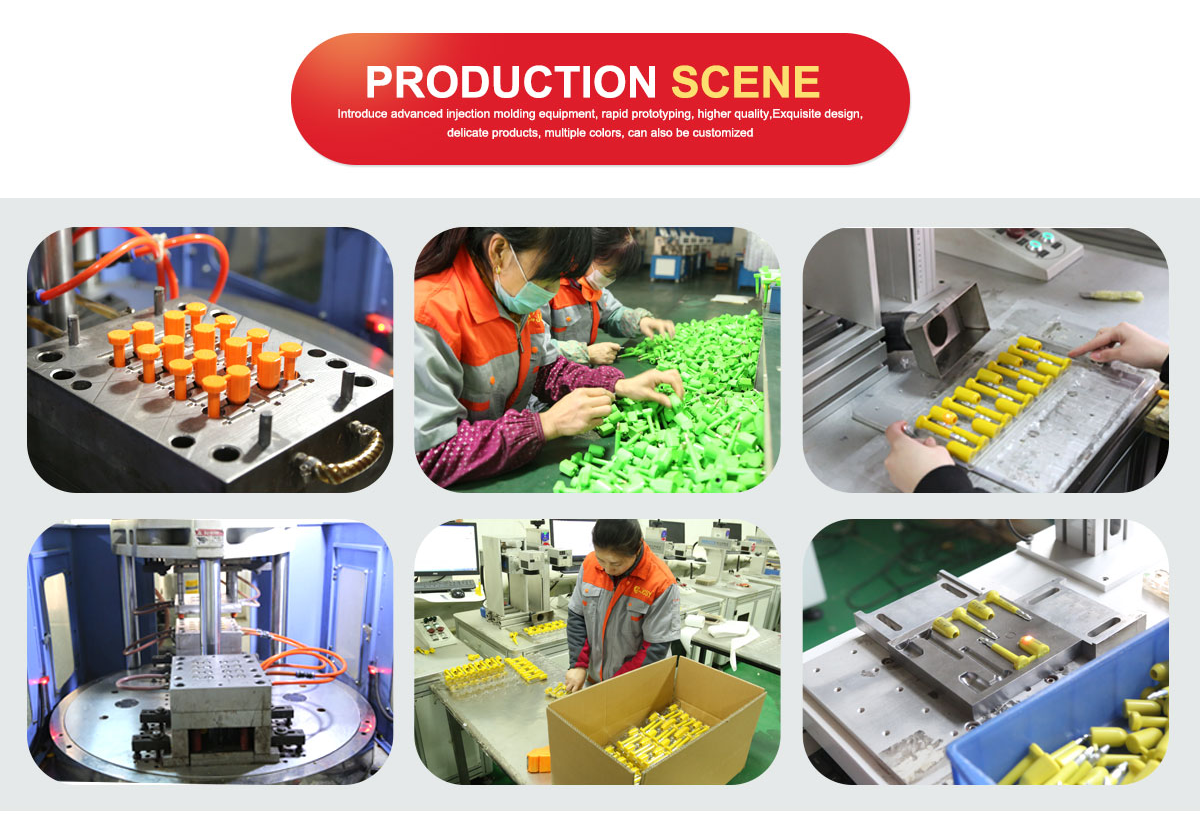

Production Scene
