Bolt Seals
The high-protection sealing body adopts a clip-spring structure and is covered with ABS. The surface of the lock body can be customized by laser typing, marking, coding, barcode, color, etc., mainly used for sealing of containers, container trucks, trucks, vans, etc. a device.
The high security seal is firm, easy to lock, safe and reliable.
Use cutting-edge laser technology and hot pressing technology to print the company's required name or logo, etc.
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCBS003
· Standard or Nonstandard: Standard
· Color: Red,yellow,blue white,green etc.

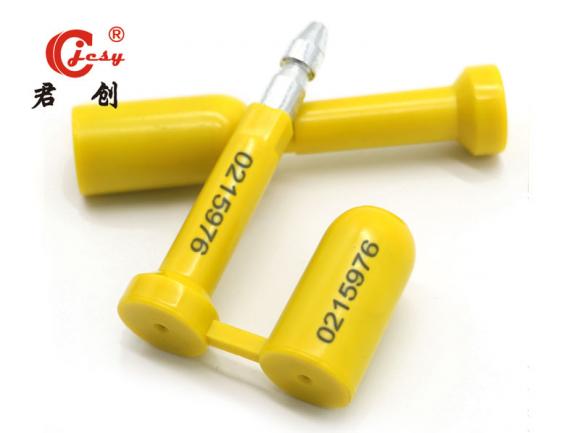

· Product name: JCBS001 Made in China high security container bolt seal
· Application: Tank,Trailer Doors using
· Certificate: ISO9001,ISO14001,ISO18001,CTPAT
· Size: 7mm,8mm daimeter
· Keyword: tamper eividence,one time used,container seal
· Packing: 10pcs per box,250 pcs per CTN
· Marking contents: Logo,serial number,words,company name and so on
· MOQ: 10pcs
Application
· Custom container,tan truck,van truck,oil tank, railway,train.

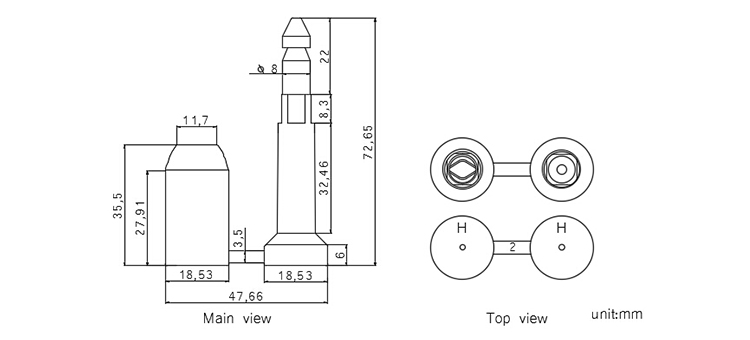

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCBS001 |
JCBS002 |
JCBS003 |
JCBS004 |
JCBS101 |
JCBS102 |
JCBS104 |
JCBS103 |
|
height |
73.8mm |
74.68mm |
72.65mm |
80.5mm |
85.1mm |
75.4mm |
74.4mm |
81.8mm |
|
diameter |
8mm/7mm |
|||||||
|
Inner rod color |
White zinc plating / color zinc |
|||||||
|
Material |
ABS, Q235A low carbon steel |
|||||||
|
Rod height |
72-110mm |
|||||||
|
Spring material |
Carbon spring steel |
|||||||
|
Spring shape |
Diamond / O type |
|||||||
|
Shell color |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
pull |
>18KN |
|||||||
|
package |
10 boxes/box, 25 boxes/carton, can be customized according to customer's specified method |
|||||||
|
Box size |
53*32*14cm can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
|
application |
High security seals: containers, trailers, tankers, shipping, rail transport, logistics and freight, safes, lockers, etc. |
|||||||
Packaging

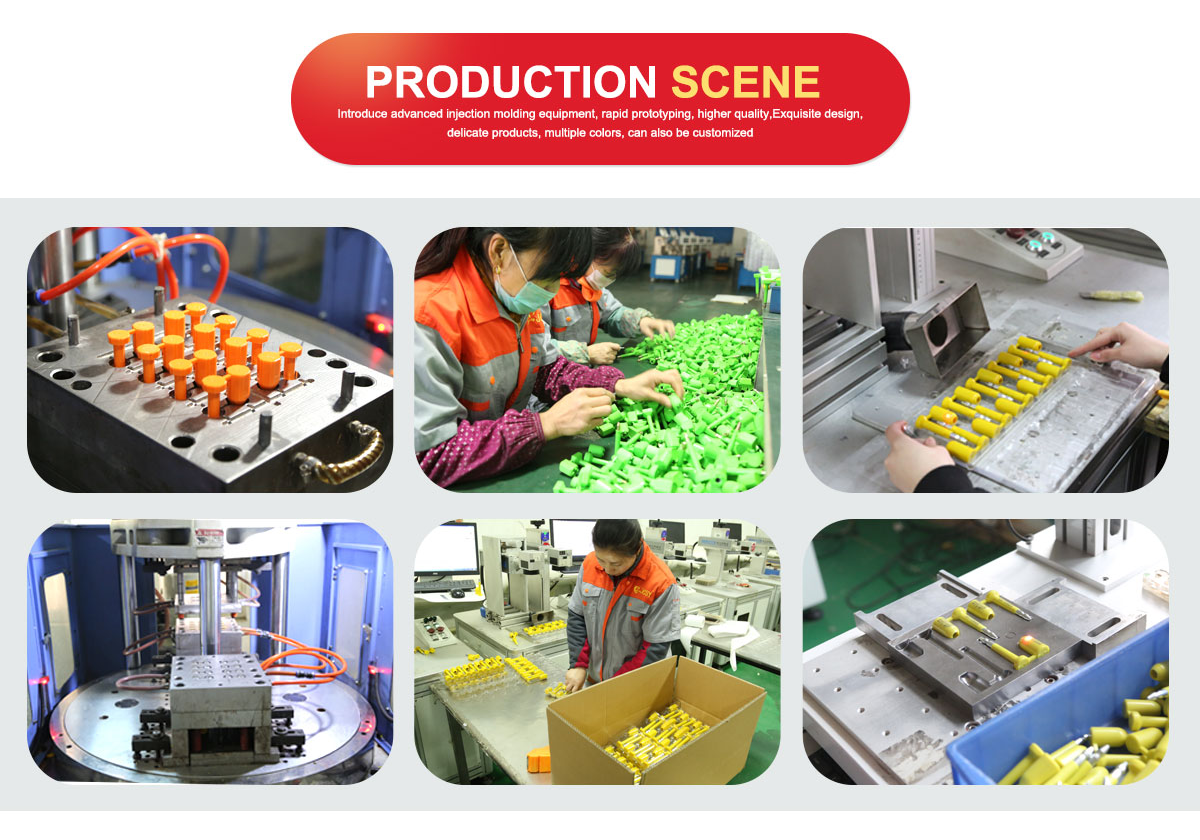

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
