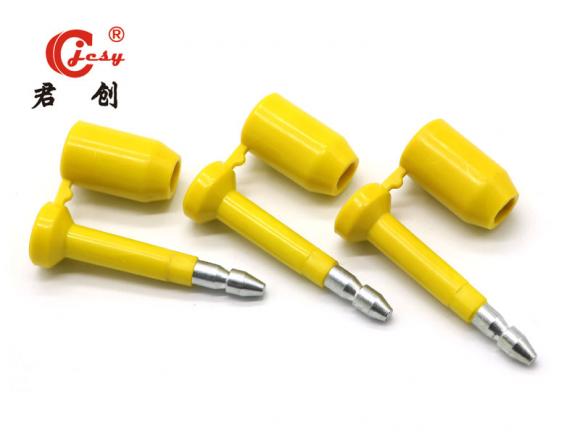

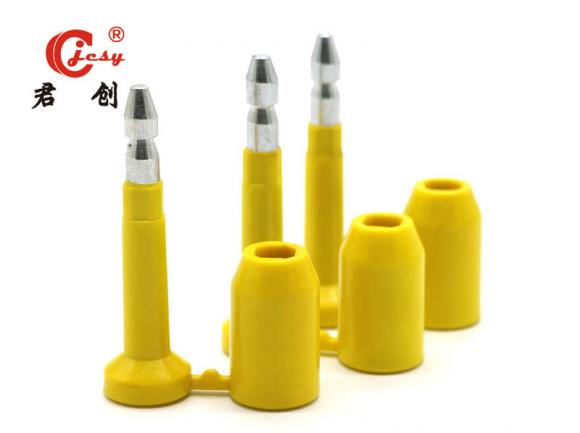

Bolt Seals
High security seal features: lock body, lock rod made of metal, the inside of the lock body is a clip spring structure.
Can be widely used in railways, highways, ports, aviation, petroleum, chemical, electric industry, post and telecommunications, cargo transportation containers, tank trucks, packaging bags and various meters, etc.
Can effectively guarantee the safety and confidentiality of goods
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCBS002
· Color: Red,yellow,blue white,green etc.
· Certificate: ISO9001,ISO14001,ISO18001,CTPAT
· Size: 7mm,8mm diameter
· Keyword: tamper eividence,one time used,container seal
· Packing: 10pcs per box,250 pcs per CTN
· Marking contents: Logo,serial number,words,company name and so on
· MOQ: 100pcs
· Temperature: -40℃~60℃
Application
· Custom container,tan truck,van truck,oil tank, railway,train.

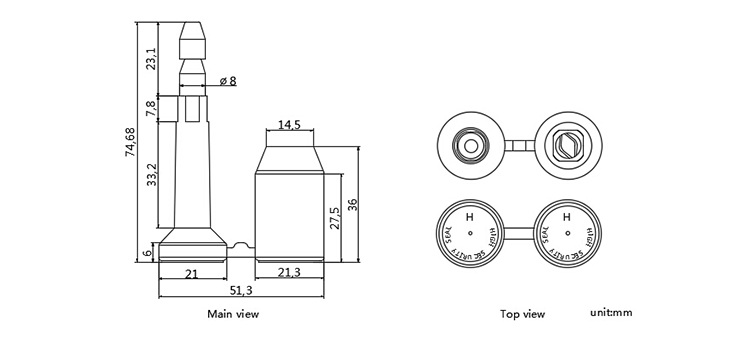

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCBS001 |
JCBS002 |
JCBS003 |
JCBS004 |
JCBS101 |
JCBS102 |
JCBS104 |
JCBS103 |
|
height |
73.8mm |
74.68mm |
72.65mm |
80.5mm |
85.1mm |
75.4mm |
74.4mm |
81.8mm |
|
diameter |
8mm/7mm |
|||||||
|
Inner rod color |
White zinc plating / color zinc |
|||||||
|
Material |
ABS, Q235A low carbon steel |
|||||||
|
Rod height |
72-110mm |
|||||||
|
Spring material |
Carbon spring steel |
|||||||
|
Spring shape |
Diamond / O type |
|||||||
|
Shell color |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
pull |
>18KN |
|||||||
|
package |
10 boxes/box, 25 boxes/carton, can be customized according to customer's specified method |
|||||||
|
Box size |
53*32*14cm can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
|
application |
High security seals: containers, trailers, tankers, shipping, rail transport, logistics and freight, safes, lockers, etc. |
|||||||
Packaging

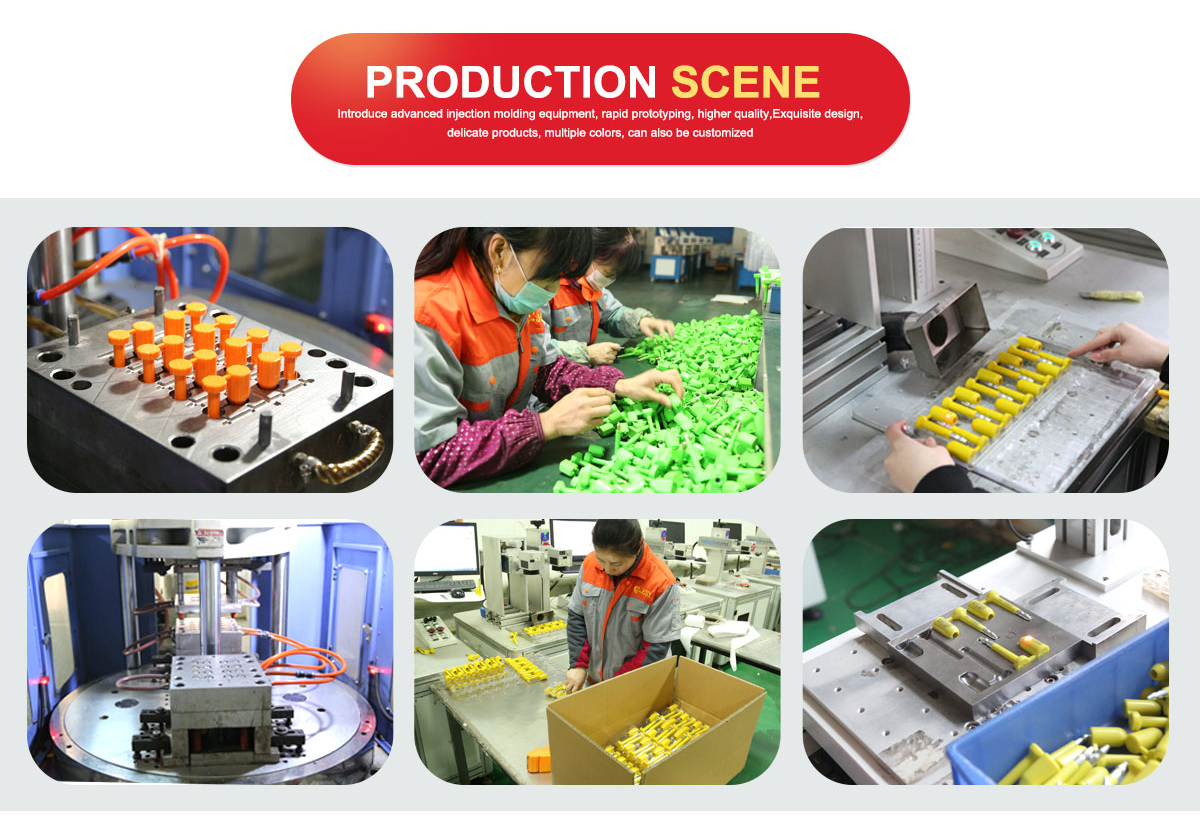

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
