Low temperature anti-fracture and good toughness; permanent laser print security mark;
Used to fix wires, cables, etc.
The serrations on the seal strip can be tightly fitted with the elastic plastic buckle inside the plastic mouth.
Can play a very strong fixation
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS308
· Material: PP+PE
· Style: one-step molding plastic seal
· Length: 400mm
· Marking area: 40.5*21.4mm
· Diameter: 6mm
· Fabrication process: one-step molding plastic seal
· Color: Yellow,White,Blue,Green,Red,Orange and so on
· Printing type: Laser marking or hot stamping,screen printing
· Marking contents: Numbers,Letters,mark,bar codes
· Tensile Strength: 396N
· Packing weight: 14.16kg
· Standard or Nonstandard: Standard
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

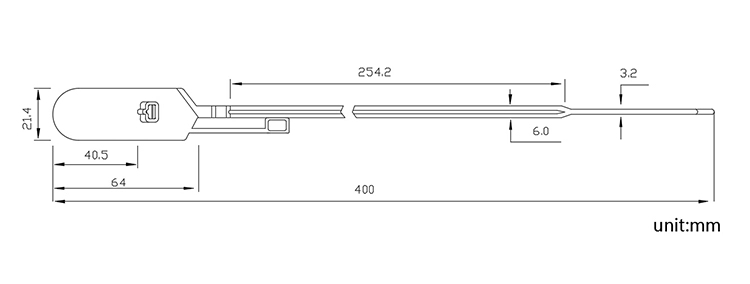

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS101 |
JCPS104 |
JCPS102 |
JCPS308 |
JCPS106 |
JCPS108 |
JCPS109 |
JCPS107 |
|
length |
410mm |
405mm |
460mm |
400mm |
400/500mm |
315mm |
344mm |
460mm |
|
Marking area size |
71.4*44.3mm |
42*22 mm |
1.5*56.5 mm |
40.5*21.4mm |
40*21.5mm |
36*30mm |
27*20.2mm |
26.4*19.8mm |
|
diameter |
7mm |
9mm |
6mm |
7.5mm |
8mm |
7mm |
||
|
pull |
719N |
353N |
535N |
396N |
310N |
431N |
329N |
|
|
Material |
PP |
nylon |
||||||
|
Manufacturing process |
One molding |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal, etc. |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging
Production Scene
Junchuang is one of the largest manufacturer of security seals in China
