This product is made of PP+PE, hot-melt crimping, and the lock cylinder is made of POM material for easy recycling.
Tighten lock type; large marking area,
Marking methods are laser marking, hot stamping, screen printing
Hotline: +86 16653166099 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shangdong,China(Mainland)
· Brand Name: JunChuang
· Model Number: JCPS304
· Standard or Nonstandard: Standard
· Length: 295mm
· Color: Red, yellow, orange, gray etc.
· Feature: Resistance
· Printing: Laser marking
· Packing: Carton Box
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

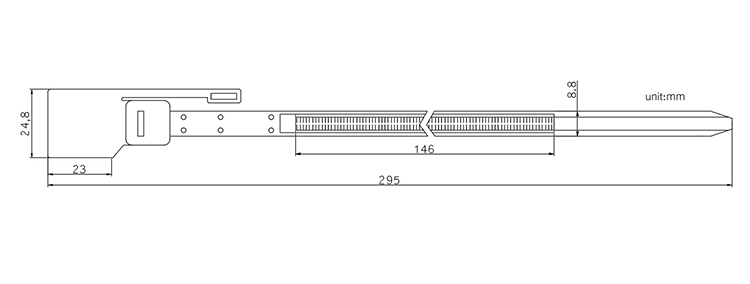

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS302 |
JCPS303 |
JCPS304 |
JCPS305 |
JCPS402 |
JCPS404 |
JCPS602 |
JCPS408 |
|
length |
300/400/500mm |
500mm |
295mm |
190mm |
200mm |
274mm |
238mm |
330mm |
|
Marking area size |
32.6*27.8mm |
50*28.5 mm |
23*24.8mm |
30*20 mm |
11*12 mm |
67.5*25mm |
29.4*17.5mm |
26.1*10 mm |
|
diameter |
4mm |
8.8mm |
2.5mm |
10mm |
8mm |
3mm |
4.5mm |
|
|
pull |
107N |
196N |
490N |
>200N |
||||
|
Manufacturing process |
Hot melt crimping / ultrasonic welding |
|||||||
|
Material |
PP |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal, etc. |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging
Production Scene
Junchuang is one of the largest manufacturer of security seals in China
