This product is made of PP+PE, No. 65 manganese steel/304 stainless steel for easy recycling.
Available in red, yellow, orange, blue, green, etc.
Special colors need to be customized
Simple and fast operation, strong security
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS205
· Material: PP+PE,#65 manganese steel/304Stainless steel
· Style: Embedded steel plastic seal

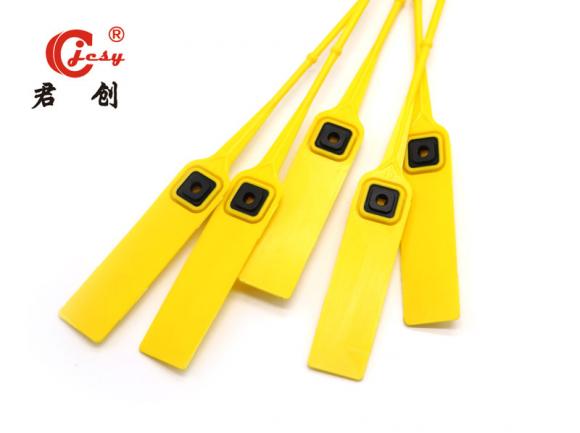

· Product name: Disposable security plastic seals for shoes clothing
· Length: 500mm
· Marking area: 59.5*21.2mm
· Diameter: 3.2mm
· Fabrication process: hot melting edge
· Color: Yellow,White,Blue,Green,Red,Orange and so on
· Printing type: Laser marking or hot stamping,screen printing
· Marking contents: Numbers,Letters,mark,bar codes
· Tensile Strength: 258N
· Packing weight: 14.66kg
· Standard or Nonstandard: Standard
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

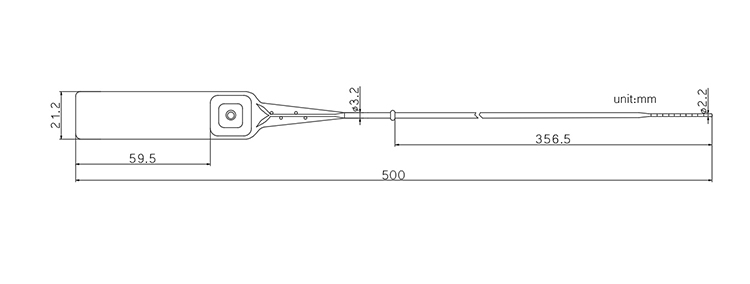

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS201 |
JCPS202 |
JCPS203 |
JCPS204 |
JCPS205 |
JCPS207 |
JCPS208 |
JCPS206 |
|
length |
300/400/500/620 mm |
345mm |
400mm |
455mm |
500mm |
375mm |
500mm |
540mm |
|
Marking area size |
51.2*25 mm |
56*25mm |
31.2*24.3mm |
38*21.8mm |
59.5*21.2mm |
49.5*20mm |
63*30mm |
59.2*30mm |
|
diameter |
7mm |
5mm |
3.2mm |
3.2mm |
6mm |
4mm |
3mm |
|
|
pull |
417N |
491N |
250N |
294N |
258N |
>200N |
375N |
244N |
|
Manufacturing process |
Hot melt crimping / ultrasonic welding |
|||||||
|
Material |
PP |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging
Production Scene
Junchuang is one of the largest manufacturer of security seals in China
