It can effectively guarantee the safety and confidentiality of the goods and save copper wire or steel wire.
The lead seal has been removed, and the plastic seal is easy to use.
High temperature pressing, with high hardness, strong toughness, clear and clear, etc.
Lead-free poisoning, no pollution, is the most economical environmentally friendly product
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS202
· Material: PP+PE,#65 manganese steel
· Style: Embedded steel plastic seal
· Length: 345mm
· Marking area: 56*25mm
· Diameter: 7mm
· Fabrication process: hot melting edge
· Color: Yellow,White,Blue,Green,Red,Orange and so on
· Printing type: Laser marking or hot stamping,screen printing
· Marking contents: Numbers,Letters,mark,bar codes
· Tensile Strength: 491N
· Packing weight: 15.33kg
· Standard or Nonstandard: Standard
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

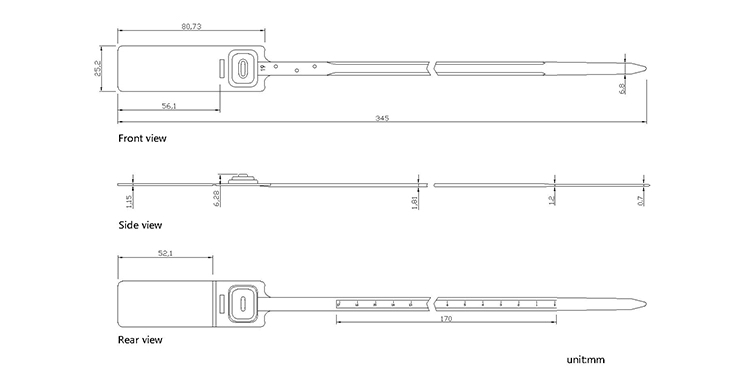

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS201 |
JCPS202 |
JCPS203 |
JCPS204 |
JCPS205 |
JCPS207 |
JCPS208 |
JCPS206 |
|
length |
300/400/500/620 mm |
345mm |
400mm |
455mm |
500mm |
375mm |
500mm |
540mm |
|
Marking area size |
51.2*25 mm |
56*25mm |
31.2*24.3mm |
38*21.8mm |
59.5*21.2mm |
49.5*20mm |
63*30mm |
59.2*30mm |
|
diameter |
7mm |
5mm |
3.2mm |
3.2mm |
6mm |
4mm |
3mm |
|
|
pull |
417N |
491N |
250N |
294N |
258N |
>200N |
375N |
244N |
|
Manufacturing process |
Hot melt crimping / ultrasonic welding |
|||||||
|
Material |
PP |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging
Production Scene
Junchuang is one of the largest manufacturer of security seals in China
