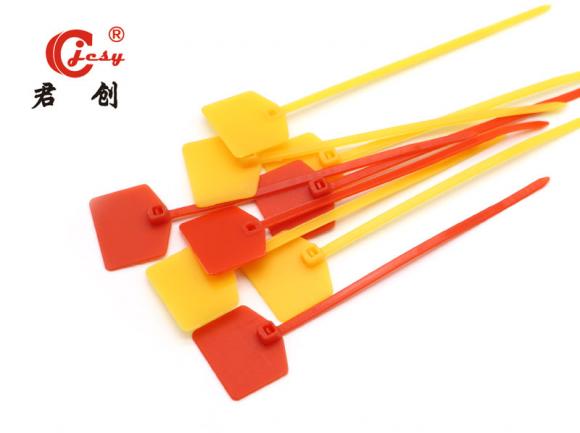

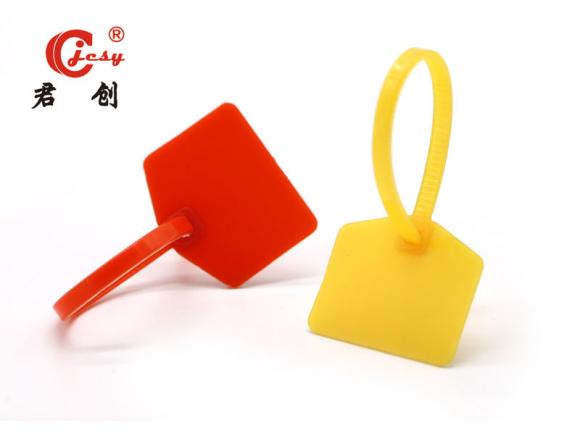

This product is made of PP+PE, molded at one time, made of 100% plastic for recycling.
Tighten lock type; large marking area,
Marking methods are laser marking, hot stamping, screen printing
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS112
· Material: PP+PE
· Style: one-step molding plastic seal
· length: 120mm
· Marking area: 16*25.6mm
· Diameter: 3mm
· Fabrication process: one-step molding plastic seal
· Color: Yellow,White,Blue,Green,Red,Orange and so on
· Printing type: Laser marking or hot stamping,screen printing
· Marking contents: Numbers,Letters,mark,bar codes
· Tensile Strength: 179N
· Packing weight: 3.36kg
· Standard or Nonstandard: Standard
Application
· All kinds of Containers, Trucks, Tanks, Doors,Postal services, Courier services, Bags, Airline Luggage,Airline,Liquor,Carts,Food Carts, Trolleys.
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

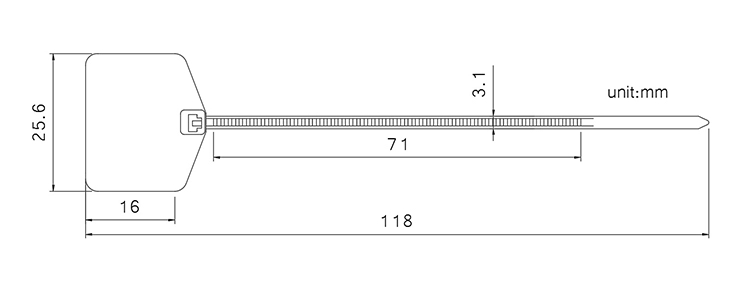

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS110 |
JCPS111 |
JCPS307 |
JCPS112 |
JCPS114 |
JCPS113 |
JCPS119 |
JCPS301 |
|
length |
336mm |
254mm |
170mm |
120mm |
495mm |
397mm |
350mm |
300mm |
|
Marking area size |
37*20.7 mm |
23.5*18.8mm |
20.6*29.4mm |
16*25.6mm |
148*89.5mm |
38*23.4mm |
35*25 mm |
29.8*19.8mm |
|
diameter |
8mm |
4mm |
3mm |
9mm |
7mm |
6mm |
3mm |
|
|
pull |
453N |
172N |
719N |
410N |
424N |
68N |
||
|
Material |
PP |
|||||||
|
Manufacturing process |
One molding |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal, etc. |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging
Production Scene
Junchuang is one of the largest manufacturer of security seals in China
