Marking by laser marking, hot stamping, screen printing, etc.
Marking content includes numbers, letters, logos, barcodes, company logos, etc.
Good resistance to acid, alkali and insulation, not easy to age
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS106
· Material: PP+PE
· Style: Mechanical Seal
· Color: red/green/blue and so on
· Size: 404mm*21.5mm
· Average Strength: >200N
· Imprinting: Laser engraving/Hot stamping
· Marks: Numbering,logo,bar code
· Certificate: ISO9001
· Standard or Nonstandard: Standard
Application
· All kinds of Containers, Trucks, Tanks, Doors,Postal services, Courier services, Bags, Airline Luggage,Airline,Liquor,Carts,Food Carts, Trolleys.
Features
· Self-locking – no tools required
· All plastic, easy for recycling
· Adjustable with over twenty locking positions
Specification
· All plastic, easy for recycling.
· Pull tight locking mechanism.
· Removable by bolt/cable cutters, eyes protection is necessary.
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

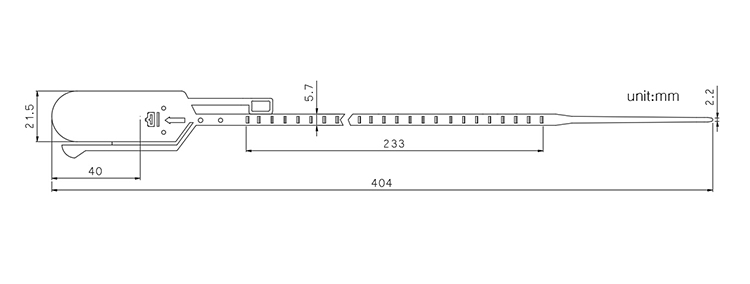

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS101 |
JCPS104 |
JCPS102 |
JCPS308 |
JCPS106 |
JCPS108 |
JCPS109 |
JCPS107 |
|
length |
410mm |
405mm |
460mm |
400mm |
400/500mm |
315mm |
344mm |
460mm |
|
Marking area size |
71.4*44.3mm |
42*22 mm |
1.5*56.5 mm |
40.5*21.4mm |
40*21.5mm |
36*30mm |
27*20.2mm |
26.4*19.8mm |
|
diameter |
7mm |
9mm |
6mm |
7.5mm |
8mm |
7mm |
||
|
pull |
719N |
353N |
535N |
396N |
310N |
431N |
329N |
|
|
Material |
PP |
nylon |
||||||
|
Manufacturing process |
One molding |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal, etc. |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

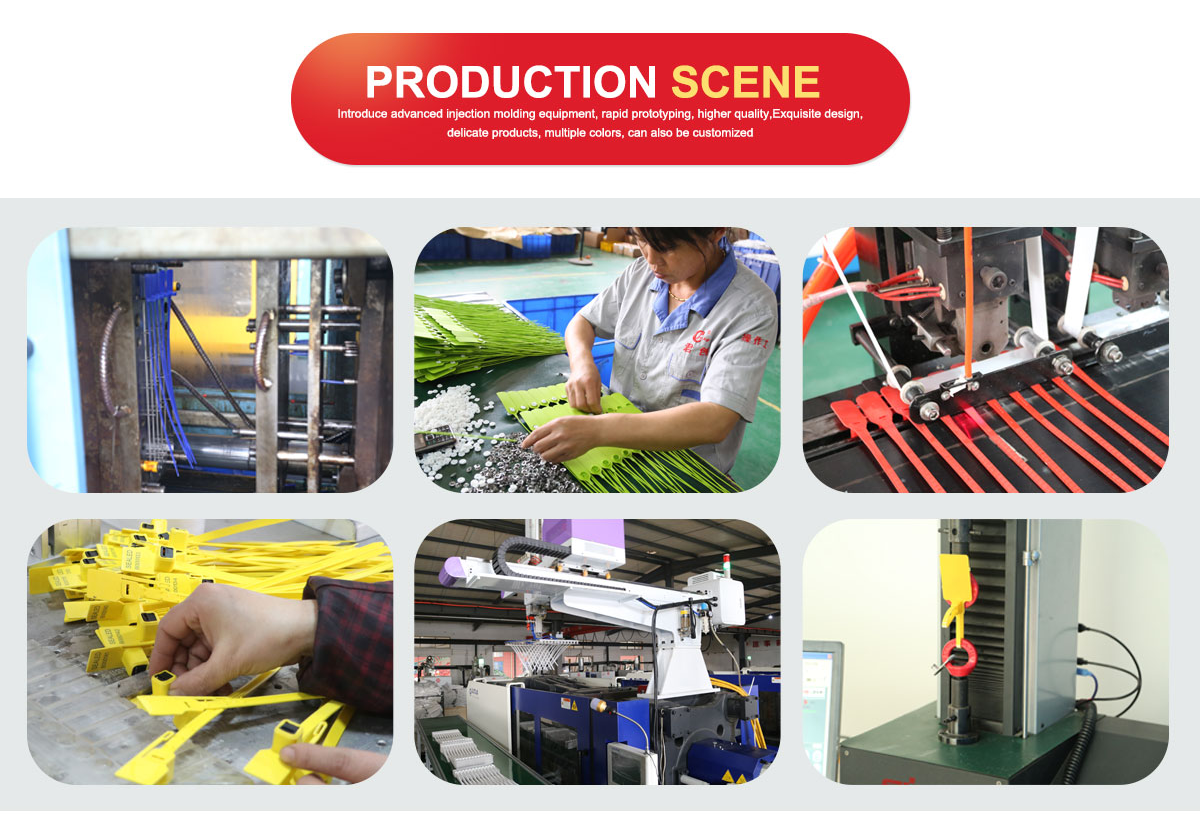

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
