The product is made of hot melt crimping and can pull up to 173N.
Marking by laser marking, hot stamping, screen printing, etc.
Marking content includes numbers, letters, logos, barcodes, company logos, etc.
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shangdong,China(Mainland)
· Brand Name: JunChuang
· Model Number: JCPS005
· Standard or Nonstandard: Standard
· Length: 300/400/500mm
· Color: Red, yellow, orange, gray etc.
· Printing: Laser marking
· Packing: Carton Box
· Keyword: Security plastic seal
Application
· All kinds of Containers, Trucks, Tanks, Doors,Postal services, Courier services, Bags, Airline Luggage,Airline,Liquor,Carts,Food Carts, Trolleys.
Features
· Self-locking – no tools required
· All plastic, easy for recycling
· Adjustable with over twenty locking positions
Specification
· All plastic, easy for recycling.
· Pull tight locking mechanism.
· Removable by bolt/cable cutters, eyes protection is necessary.
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

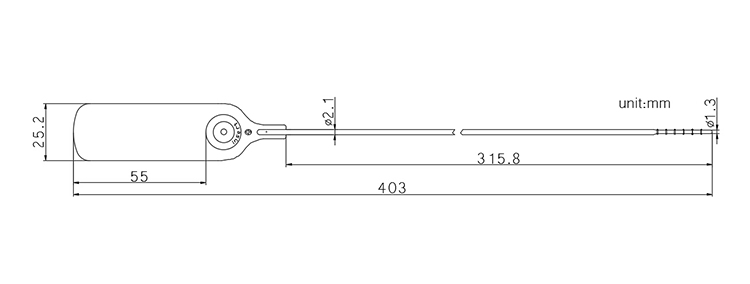

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS001 |
JCPS002 |
JCPS003 |
JCPS005 |
JCPS006 |
JCPS007 |
JCPS008 |
JCPS004 |
|
length |
250mm |
450mm |
300/400/500/700mm, long brand 420mm |
300/400mm |
450/500mm |
280mm |
145mm |
340/400mm |
|
Marking area size |
91.65*80.27mm |
38*30mm |
28.26*18.8mm, Long card 63*25mm |
55*25.2mm |
52.6*31mm |
34.7*13.5mm |
32.1*18.8mm |
28.6*21.3mm |
|
diameter |
2mm |
4mm |
3mm |
2mm |
4mm |
2mm |
2.5mm |
3mm |
|
pull |
124N |
409N |
235N |
173N |
430N |
165N |
185N |
237N |
|
Manufacturing process |
Hot melt crimping / ultrasonic welding |
|||||||
|
Material |
PP |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal, etc. |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

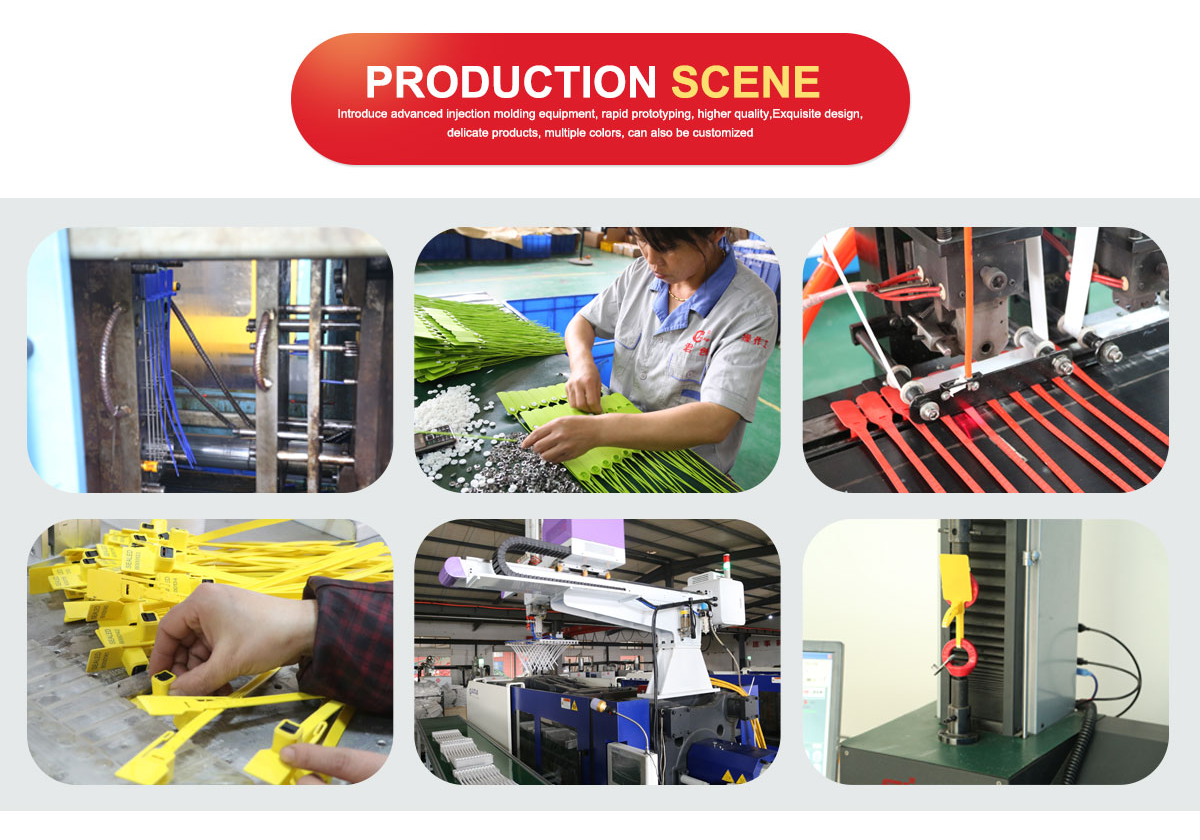

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
