The product consists of two parts, one end is a square plastic mouth,
There is a hook-shaped elastic plastic buckle inside, and the other end is a plastic strip with serrated teeth.
The body can be bent through the plastic port in the front and form a ring shape.
Generally used in express delivery, logistics, catering, hospitals, postal, etc.
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS004
· Material: PP+PE,#65 manganese steel/304Stainless steel
· Style: Embedded steel plastic seal
· Length: 340/400mm
· Marking area: 28.6*21.3mm
· Diameter: 3mm
· Fabrication process: Ultrasonic welding
· Color: Yellow,White,Blue,Green,Red,Orange and so on
· Printing type: Laser marking or hot stamping,screen printing
· Marking contents: Numbers,Letters,mark,bar codes
· Tensile Strength: 237N
· Standard or Nonstandard: Standard
Application
· All kinds of Containers, Trucks, Tanks, Doors,Postal services, Courier services, Bags, Airline Luggage,Airline,Liquor,Carts,Food Carts, Trolleys.
Features
· Self-locking – no tools required
· All plastic, easy for recycling
· Adjustable with over twenty locking positions
Specification
· All plastic, easy for recycling.
· Pull tight locking mechanism.
· Removable by bolt/cable cutters, eyes protection is necessary.
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

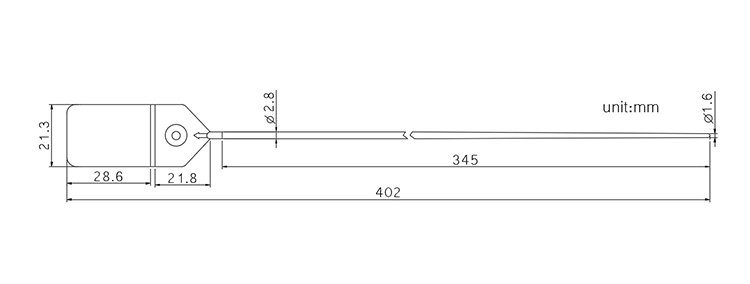

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS001 |
JCPS002 |
JCPS003 |
JCPS005 |
JCPS006 |
JCPS007 |
JCPS008 |
JCPS004 |
|
length |
250mm |
450mm |
300/400/500/700mm, long brand 420mm |
300/400mm |
450/500mm |
280mm |
145mm |
340/400mm |
|
Marking area size |
91.65*80.27mm |
38*30mm |
28.26*18.8mm, Long card 63*25mm |
55*25.2mm |
52.6*31mm |
34.7*13.5mm |
32.1*18.8mm |
28.6*21.3mm |
|
diameter |
2mm |
4mm |
3mm |
2mm |
4mm |
2mm |
2.5mm |
3mm |
|
pull |
124N |
409N |
235N |
173N |
430N |
165N |
185N |
237N |
|
Manufacturing process |
Hot melt crimping / ultrasonic welding |
|||||||
|
Material |
PP |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal, etc. |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

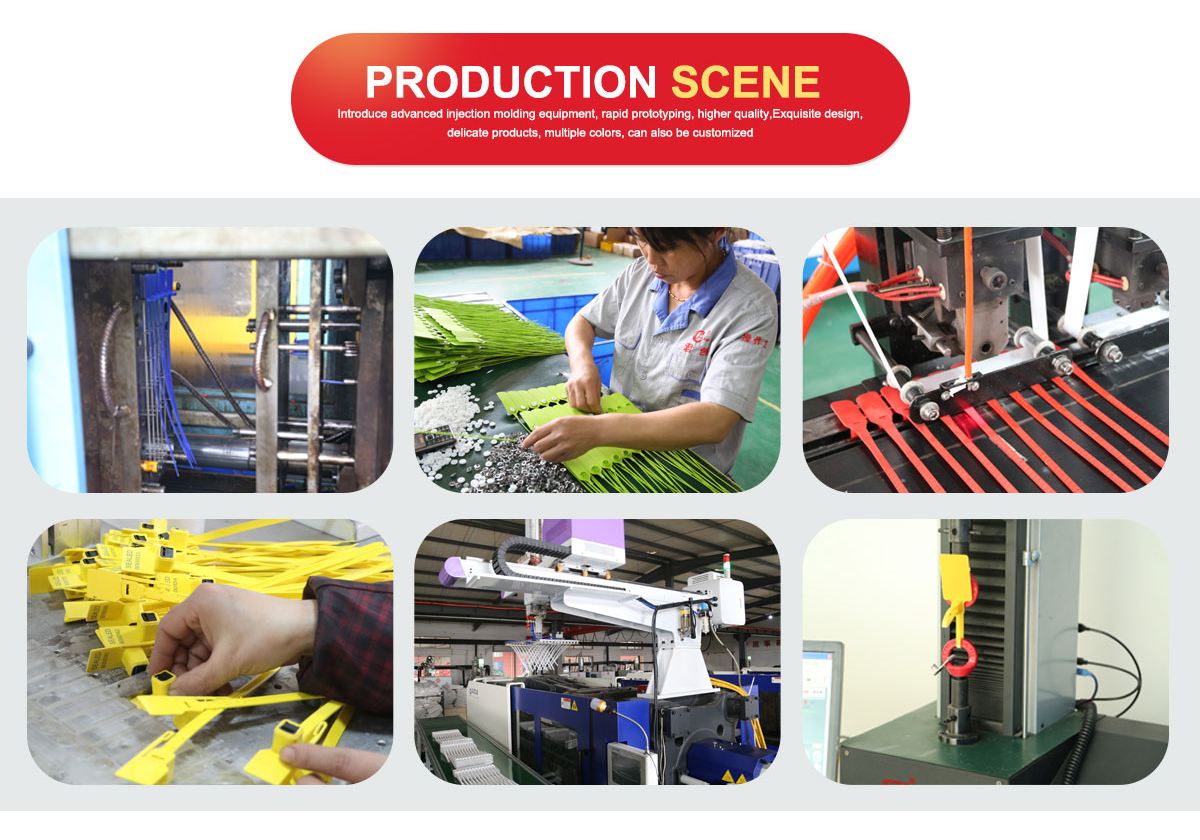

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
