The seal is injection molded from PP plastic.
The surface is stamped or laser marked, serial number, barcode,
When the seal is applied, the tension can be adjusted at will. The color can be made into red, blue, green and yellow. It can also be made into other colors according to user requirements.
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCPS003
· Material: Plastic
· Style: Mechanical Seal
· Color: Yellow Green Red White
· Feature: Resistance
· Temperature: 40~120
· Size: Standard Size
· Certificate: ISO9001:2008
· Usage: Cars Doors Windows Furniture
· Printing: Logo
· Packing: Carton
· Keyword: Plastic Seal Tag
· Standard or Nonstandard: Standard
Application
· All kinds of Containers, Trucks, Tanks, Doors,Postal services, Courier services, Bags, Airline Luggage,Airline,Liquor,Carts,Food Carts, Trolleys.
Features
· Self-locking – no tools required
· All plastic, easy for recycling
· Adjustable with over twenty locking positions
Specification
· All plastic, easy for recycling.
· Pull tight locking mechanism.
· Removable by bolt/cable cutters, eyes protection is necessary.
Useage
· Easily applied by hand.Thread strap through closure and into locking chamber.
· Pull seal up as far as possible.
· Removal by cutting tool.

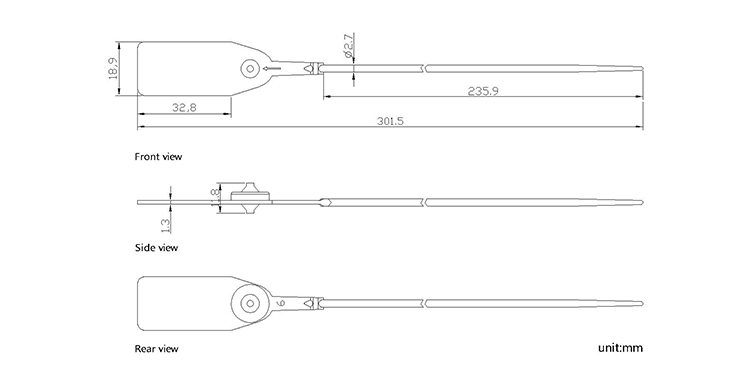

STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCPS001 |
JCPS002 |
JCPS003 |
JCPS005 |
JCPS006 |
JCPS007 |
JCPS008 |
JCPS004 |
|
length |
250mm |
450mm |
300/400/500/700mm, long brand 420mm |
300/400mm |
450/500mm |
280mm |
145mm |
340/400mm |
|
Marking area size |
91.65*80.27mm |
38*30mm |
28.26*18.8mm, Long card 63*25mm |
55*25.2mm |
52.6*31mm |
34.7*13.5mm |
32.1*18.8mm |
28.6*21.3mm |
|
diameter |
2mm |
4mm |
3mm |
2mm |
4mm |
2mm |
2.5mm |
3mm |
|
pull |
124N |
409N |
235N |
173N |
430N |
165N |
185N |
237N |
|
Manufacturing process |
Hot melt crimping / ultrasonic welding |
|||||||
|
Material |
PP |
|||||||
|
colour |
Yellow, white, blue, green, red, orange, etc. |
|||||||
|
Marking method |
Laser marking, hot stamping, other |
|||||||
|
Marking content |
Numbers, letters, logos, barcodes, etc., can be marked according to the method specified by the customer. |
|||||||
|
use |
Express, logistics, catering, hospital, postal, etc. |
|||||||
|
package |
100 pcs/pack, 25 bags/carton can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

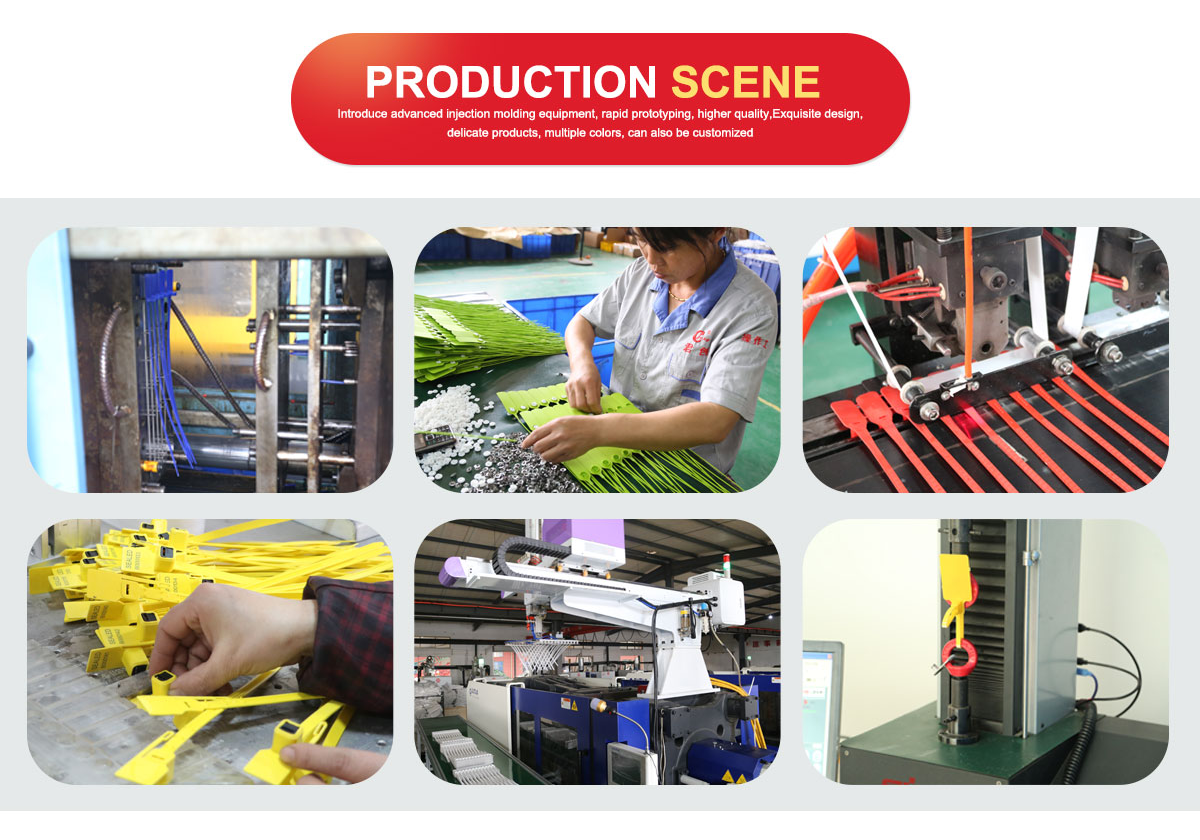

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
