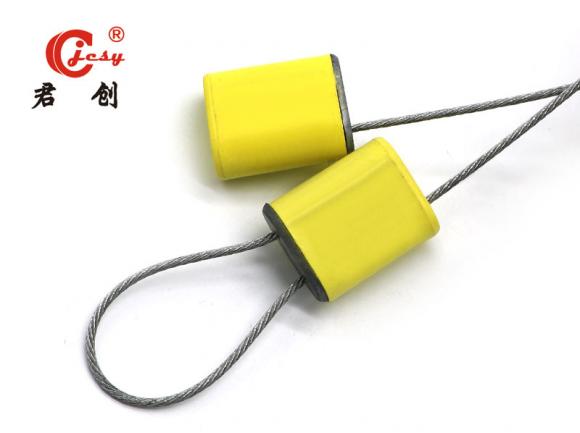

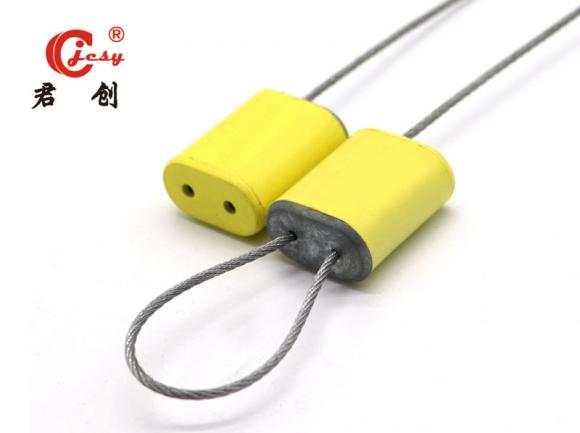

·The lock body is composed of aluminum alloy shell and zinc alloy inner parts
·Self-locking system is easy to lock
·Permanent laser maximum print security mark
· Standard total length 23cm, wire diameter 1-5mm, 5.0mm or more custom
Hotline: +86 17667362107 E-mail:jcseal01@sdjcsy.com After-sales supervision telephone：86 16653166099
INTRODUCE
Customization options
· Place of Origin: Shandong, China (Mainland)
· Brand Name: Junchuang
· Model Number: JCCS307
· Standard or Nonstandard: Standard
· Lock body size: 28.3*22.7*13
· Diameter: 1.8mm
· Fabrication process: plastic coated
· Color: red, yellow,orange,blue,green and so on
· Printing type: Laser marking
· Marking contents: Numbers,Letters,mark,bar codes
· product certificate: ISO17712,CTPAT
· Packing weight: 20.96kg
Application
· Supermarkets, oil, containers, Railway containers, meter boxes, bank purses and so on.
STRUCTURE DIAGRAM
Parameter
|
Numbering |
JCCS305 |
JCCS403 |
JCCS100 |
JCCS307 |
JCCS304 |
JCCS306 |
JCCS303 |
JCCS308 |
|
Material |
ABS Powder metallurgy A3 wire rope |
Aluminum alloy A3 wire rope |
iron A3 wire rope |
Aluminum alloy A3 wire rope |
||||
|
Lock body size |
39.7*14*12.2 |
42.6*11.8*11.8 |
38.4*28.5*9.2 |
28.3*22.7*13 |
45.3*28.7*6.6 |
40.16*20.23*12.17 |
26.4*19.4*11.76 |
17.9*11.4*6.4 |
|
diameter |
1.8mm, etc. |
1.5mm |
2.5mm |
1.0mm |
||||
|
Manufacturing process |
Injection molding |
Oxidative coloring stamping |
Plastic coating |
Electrostatic spraying |
Injection molding |
|||
|
Marking method |
Laser marking / hot stamping |
|||||||
|
pull |
>3.5KN |
>6KN |
>1.6KN |
|||||
|
use |
Tank lock |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
||||||
|
colour |
Red, yellow, orange, blue, green, etc. |
|||||||
|
Wire rope material |
A3 steel |
|||||||
|
Wire rope length |
23cm-25cm |
|||||||
|
Wire rope specification |
7*7 |
|||||||
|
Marking content |
Supermarkets, oil, containers, railway containers, meter boxes, bank purses, etc. |
|||||||
|
package |
100 pieces/bag, 1000 pieces/box, can be customized according to customer's specified method |
|||||||
|
Certificate |
ISO9001, ISO14001, ISO18001, ISO17712, SGS, C-TPAT anti-terrorism certification |
|||||||
Packaging

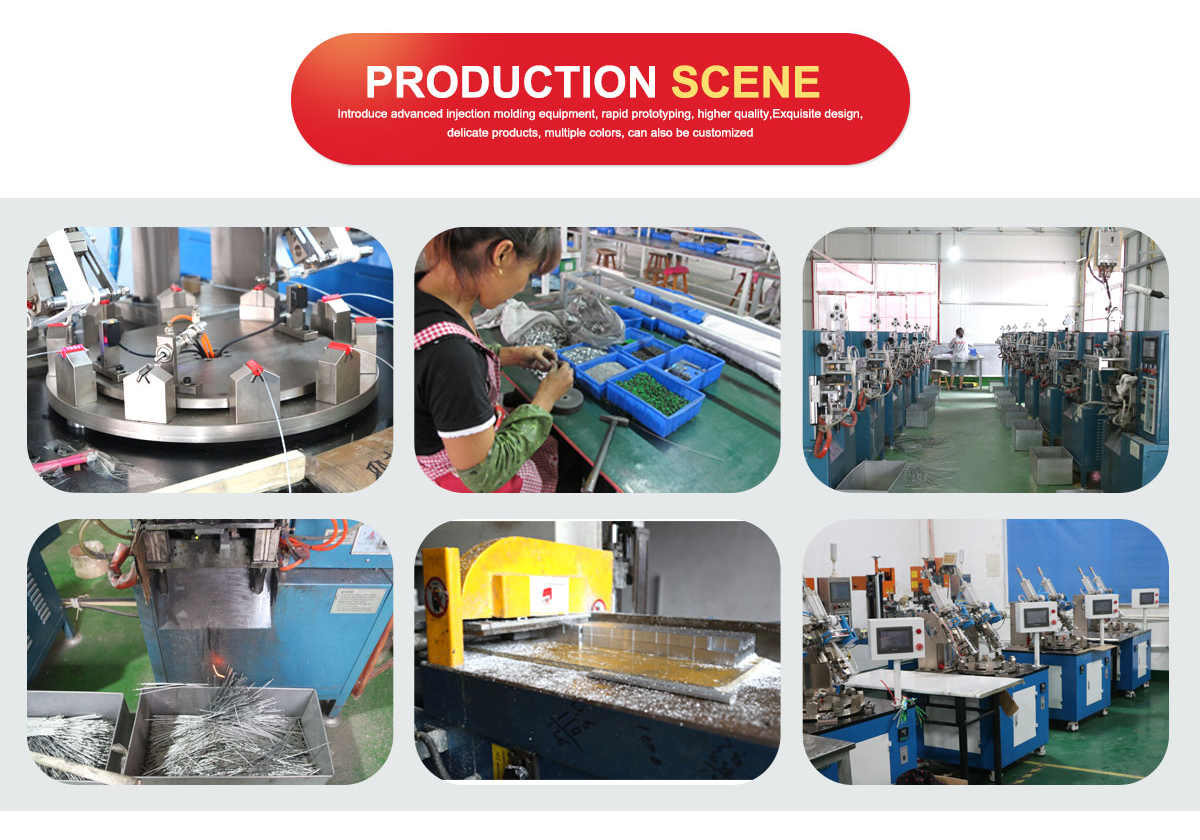

Production Scene
Junchuang is one of the largest manufacturer of security seals in China
